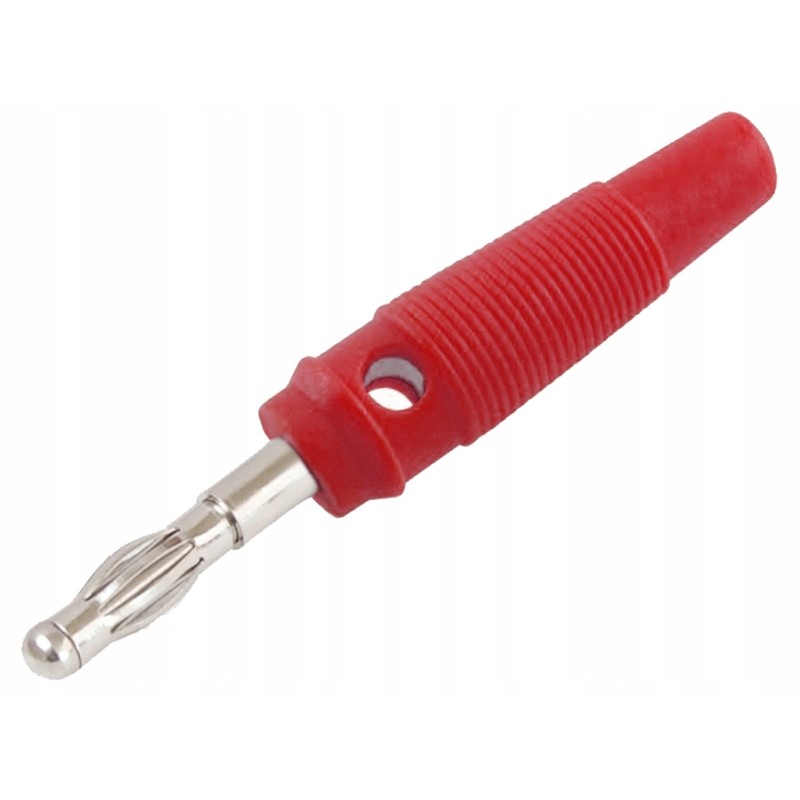

Insulated lamella banana plug 4mm WB411 24A RT

Plug, banana insulated lamellar 4mm axial, WB411/24A (RT), Amass, (254111)

ø4mm lamellar plug with ø4mm transverse socket for additional connections. The soft plug cover, resistant to being stepped on, is also a flexible deflector. Screwed connection for wires with a cross-section of up to 2.5 mm 2 (hole ø 3.1 mm) and external diameter. 4.3mm.

Specifications

Measuring accessories: ø4mm lamellar banana plug

Symbol: WB411 (RT)

Color: red

Producer: Amass

Material: nickel-plated bronze

Rated current: 24A

Rated voltage: <, 60V/30V~

Version: connectors with ø4mm transverse socket

Soldered assembly: up to 2.5mm 2 , hole ø3.1mm

Transition resistance: <.3 mΩ

Temperature range: -25°C÷70°C

Insulation: PVC

Length: 56.5 mm

Cover dimensions: 10.0 mm

Gross weight: 6.63 g.

Standard colors available on other auctions:

SW - black, RT - red, BL - blue, GE - yellow, GN - green, WS - white
