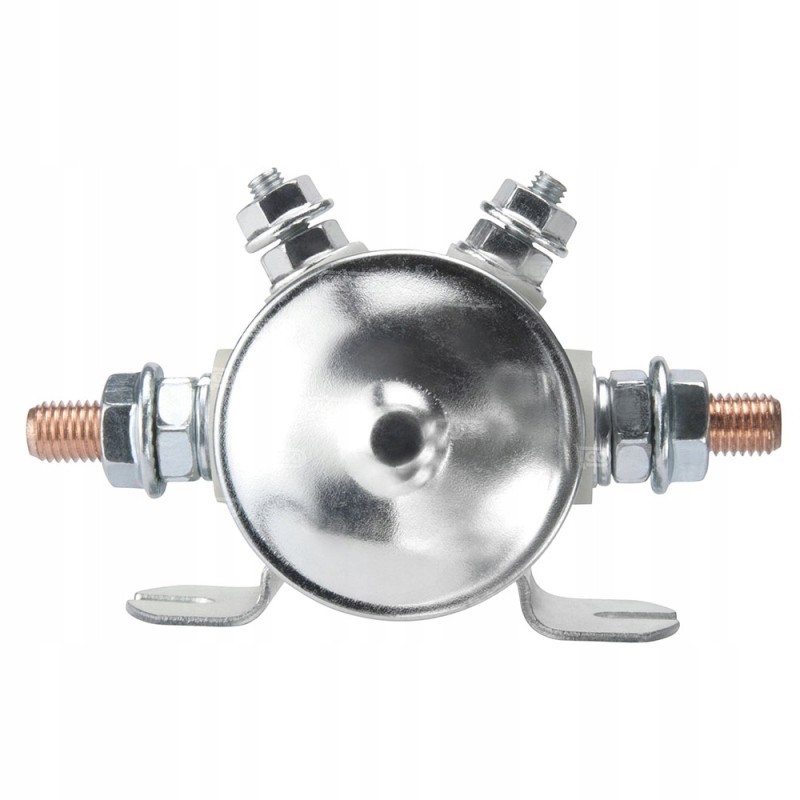

Solenoid 235442 hydro flap 12v type SS9054

Electromagnetic switchHC-CARGO 235442Voltage 12, A 150, Instantaneous load 300 Amp., 5 seconds, Dia. external in mm 41.04, Total length in mm 65.86, Number of mounting holes 2, Mounting hole 1 6.98, Mounting hole 2 15, Mounting hole 3 45, B+ M8, Height B+ 14.45, Number of connectors 4

Electrical data

Voltage 12

A 150

Instantaneous load 300 Amp

5 seconds

Dimensions:

A Dia. external in mm, 41.04

B Total length in mm, 65.86

Number of mounting holes, 2

Mounting hole 1, 6.98

Mounting hole 2, 15

Mounting hole 3, 45

G, B+, M8

H, Height B+, 14.45

, Number of connectors, 4

Replaces:

1114208 Remy (delco)

1114218 Remy (delco)

Other numbers:

1114208: DELCO

1114218: DELCO

1114223: DELCO

1114534: DELCO

15-132: PRESTOLITE

15-133 : PRESTOLITE

15-236: PRESTOLITE

15-316: PRESTOLITE

15-88: PRESTOLITE

235442: CARGO

67-702: WAI / TRANSPO

67-702-S: WAI / TRANSPO

860860: PRESTOLITE

SAS-4201 : PRESTOLITE

SAS-4202: PRESTOLITE

SAS-4213: PRESTOLITE

SAS-5201A: PRESTOLITE

SAS-5203: PRESTOLITE

SAS-5203A: PRESTOLITE

SND12001: WOODAUTO

SSD5442: KRAUF

ST85: ECHLIN

UD10511SS: AS-PL

About the manufacturer:

CARGO is a world-recognized brand of electrical and electromechanical parts, manufactured under the supervision of BOSCH, the owner of the CARGO brand, known for its highest quality.

Thanks to the high technical standards and production regimes of the parent brand, CARGO products offer the highest quality combined with an attractive price.
