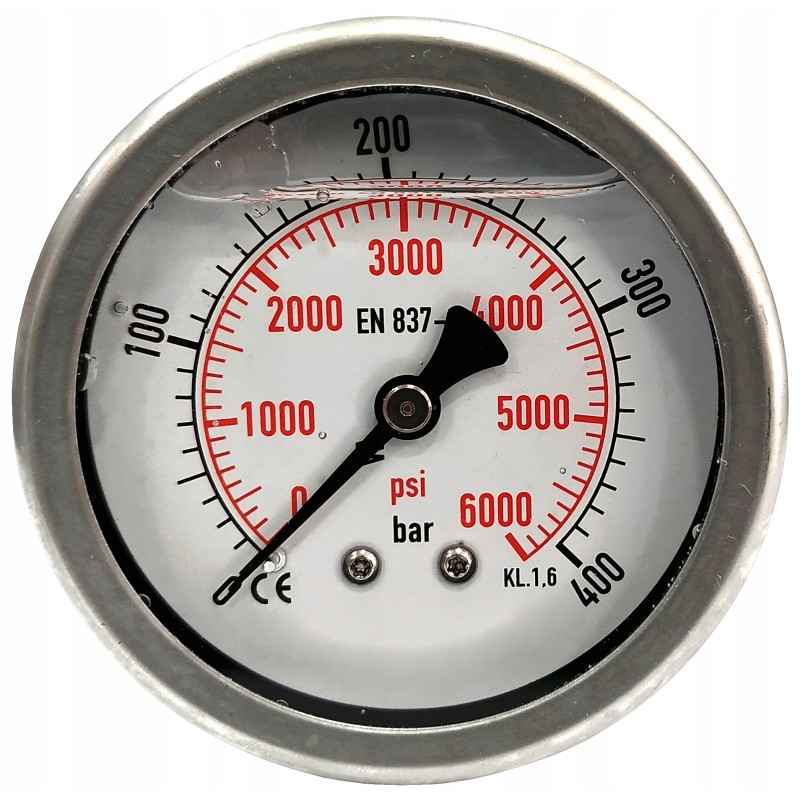

Pressure gauge 0 400 bar, rear connection

GLYCERINE MANOMETER 63 mm WITH CONNECTION FROM THE REAR CODE SKRAW-MET: [1836] PRESSURE MEASUREMENT RANGE: 0 - 400 BARMANometers intended for measuring the pressure of liquids in closed systems for measuring the pressure of gases and liquids that do not react with copper alloys.

The pressure gauge is filled with glycerin inside. The glycerine manometer differs from standard manometers by having an interior filled with glycerine, which secures and protects the pointer against vibrations and oscillations.

Glycerine also allows you to increase the level of measurement accuracy.

It has a plug to equalize the pressure inside the manometer with the atmospheric pressure.

Application:The glycerine manometer perfectly checks in hydraulically powered machines and devices.

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

(REVIEW PHOTO - depending on the delivery, the pressure gauge may differ visually, but its functionality is identical to that in description.) Technical data: Pressure measurement range: 0 - 400 Bar

Outer diameter of the clock: 63 mm

Thickness of the clock: 30 mm

Connection port thread [BSP]: 1/4' (a special connection is required, available on our other auctions)

Operating temperature: -10°C to +50°C

Accuracy class: 1.6

Material: Steel housing, glass viewfinder
