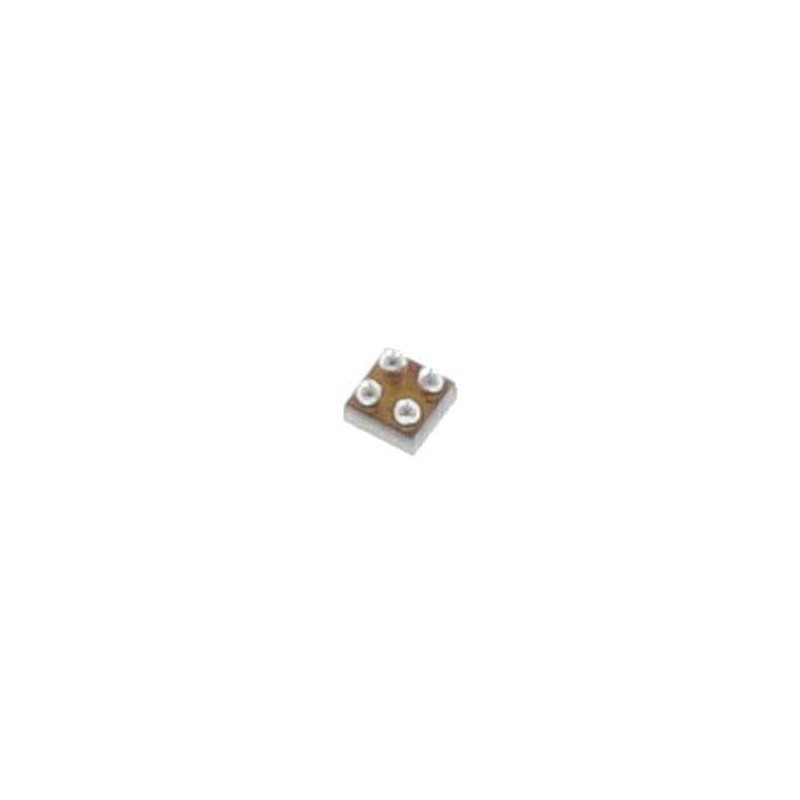

10 pcs : AH1898-CA4-7 - Board Mount Hall Effect/Magnetic Sensors Prog MicroPWR Omni 6V VDD 2.5mA 160mW

AH1898 Omnipolar Hall Effect Switch IC Diodes AH1898 is a micropower magnetic range selectable (Bop/Brp) Omnipolar Hall Effect Switch IC with internal pull-up and pull-down capability, designed for portable and battery-powered consumer equipment such as cellular phones and portable PCs. To support battery-powered equipment and low voltage microcontrollers, the AH1898 can operate over the supply range of 1.6V to 3.6V and uses a hibernating clocking system to minimize the power consumption. The average supply current is only 4.3µA typical at 1.80V. The AH1898 has an 8kV ESD rating on the supply and output pins. To minimize PCB space the AH1898 is packaged in the small CSP package (0.81mm x 0.81mm typical). The output is activated with either a north or south pole of sufficient magnetic field strength.
