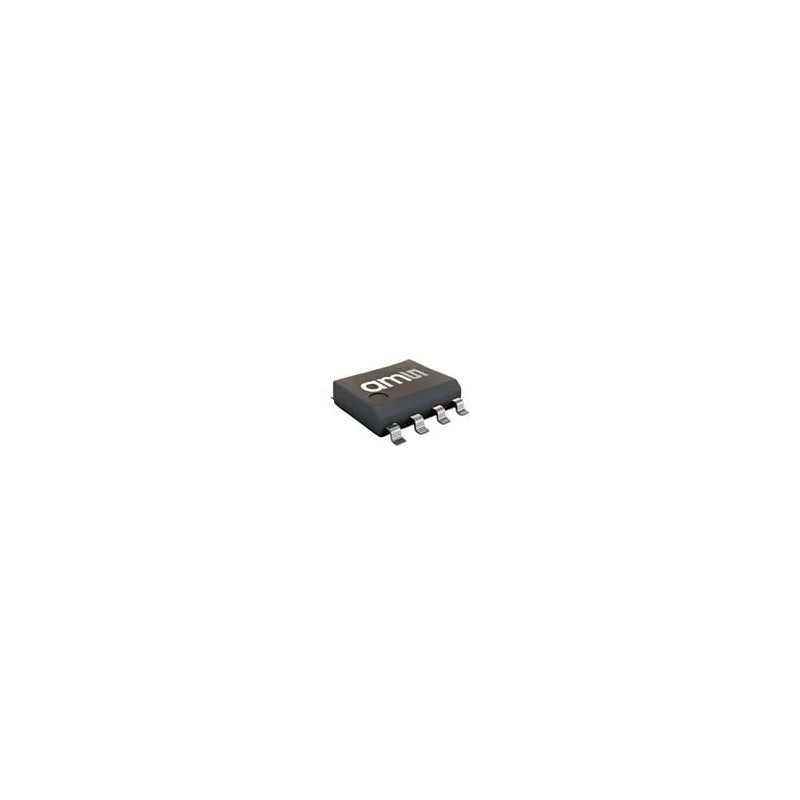

1 pcs : AS5161-HSOM - Board Mount Hall Effect/Magnetic Sensors 12-Bit Rotary Pos Sensor PWM OverVolt

AS5161 Rotary Position Sensor ams OSRAM AS5161 Rotary Position Sensor is a contactless Hall-based magnetic position sensor for very accurate angular measurement over a full turn of 360°. A sub-range can be programmed to achieve the best output characteristic for the application. A simple diametrical 2-pole magnet rotating on the center of the IC is required: the magnet may be placed above or below the IC. The AS5161 is a compact integrated solution that provides the absolute angle measurement with a resolution of 0.09° over a full revolution as a PWM output signal. The internal 14-bit core of the AS5161 enables fine programming of the start and stop positions with a resolution of 0.02° to allow the finest system mechanical adjustments. A high level of flexibility is guaranteed by the programmability through the UART interface shared with the output pin, to reduce the number of pins in the application. The angular output data can be linearized in the final production to further increase the precision of the measurement. With embedded overvoltage protection and reverse battery protection, the AS5161 can fulfill the most demanding automotive safety standard.
