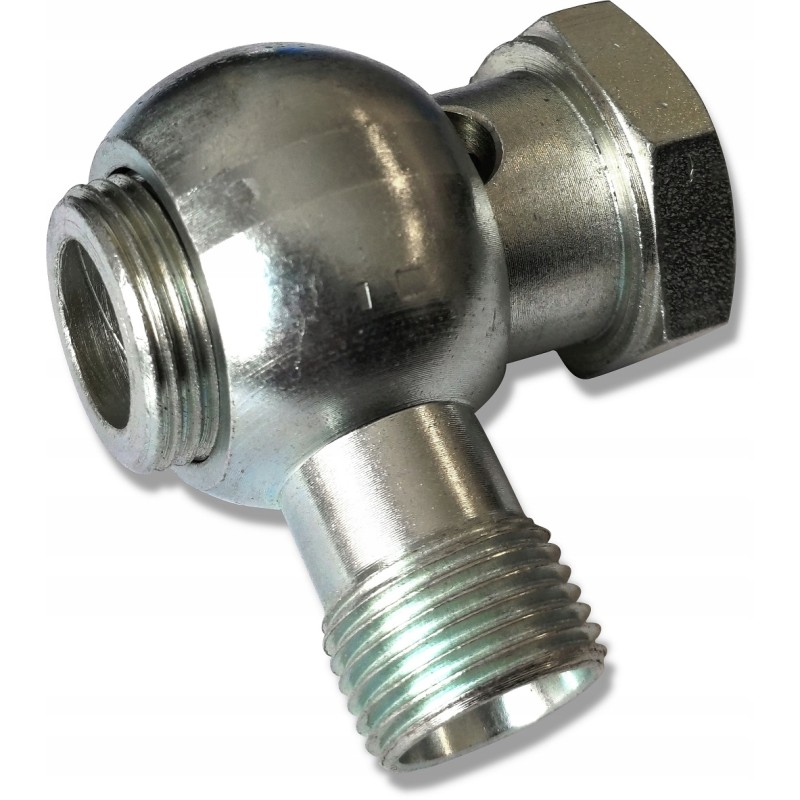

Eyelet connector m18 g3 8 screw g3 8 banjo

Hydraulic eyelet connector G3/8' with M18 thread with screw G3/8' SKRAW-MET CODE: [8364]The connector is perfect for hydraulically powered machines and devices. It can be used in agriculture, horticulture, forestry, construction and widely industry.

Eye terminals also called 'banjo' terminals - used to enable connection of the hydraulic system with other elements.

Generally used when there is not much space in the hydraulic system for a knee switch, then an eye terminal is used, which is tightened with a screw.

___Precision and quality supported by detailed measurements at every stage of production.

The most modern CAD/CAM and ERP/MRP software solutions enabling the production of details for the most demanding applications.

Technical Specification: Total length of the eyelet with thread: 46 mm

Total length of the screw: 42 mm

Eye thread: M18x1.5

Screw thread: G3/8'

Material: Free-cutting carbon steel with zinc coating - Corrosion resistant
