Eyelet connector m18 fi22 screw m22x1 5 banjo

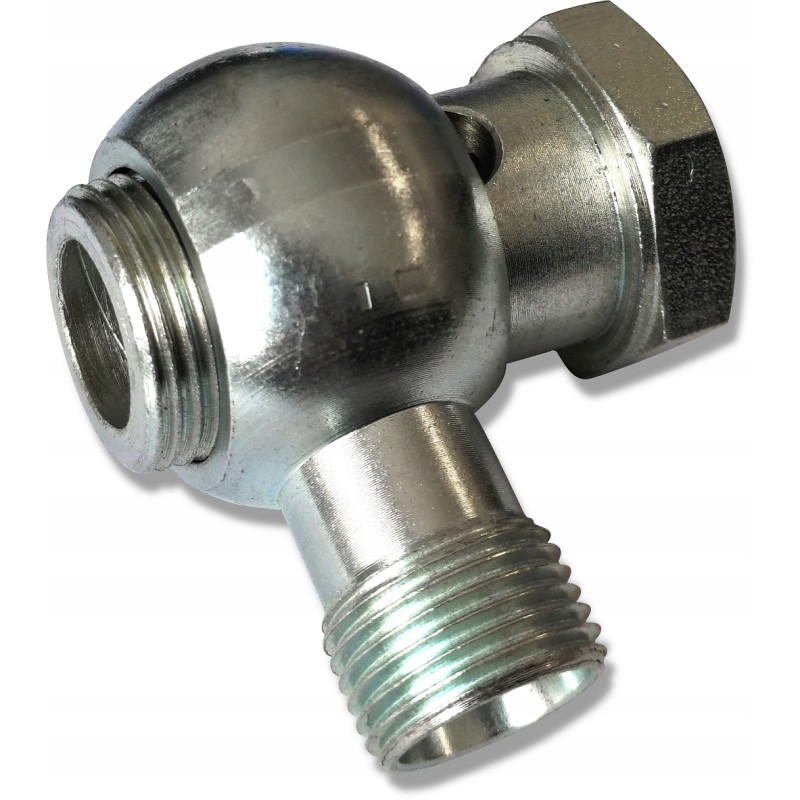

Hydraulic ring connector Fi 22mm with M16 thread with M22x1.5 screw SKRAW-MET CODE: [8363]The connector is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

Eye ends, also called 'banjo' ends - used to enable connection of the hydraulic system with other elements.

Usually used when there is not much space in the hydraulic system for a knee switch, then a ring end is used, which is tightened with a screw.

___At each stage production precision and quality supported by detailed measurements.

The most modern CAD/CAM and ERP/MRP software solutions enabling the production of details for the most demanding applications.

Technical Specification: Total length of the eyelet with thread: 52 mm

Total length of the screw: 47 mm

Eyelet thread: M18x1.5

Screw thread: M22x1.5

Material: Free-cutting carbon steel with zinc coating - Corrosion resistant
