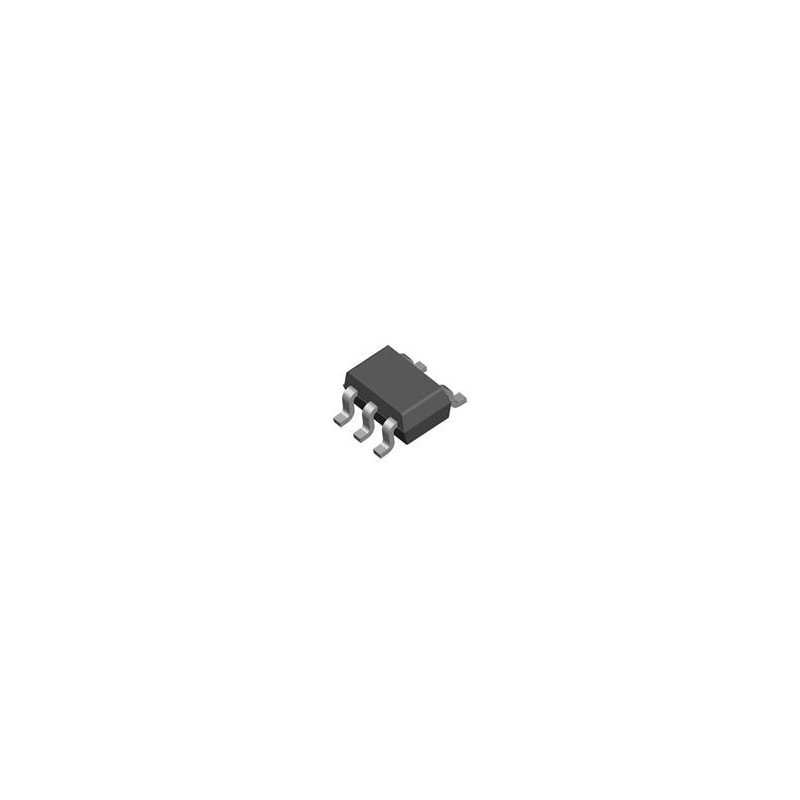

1 pcs : MC74VHC1G03DFT1G-Q - Logic Gates Single 2-Input NOR Gate, Open Drain

MC74VHC1G0x Single 2-Input Gates onsemi MC74VHC1G0x Single 2-Input Gates features an open drain output, compactly designed for minimal space consumption. The onsemi MC74VHC1G0x has an input structure that safeguards against voltages up to 5.5V, irrespective of the supply voltage, enabling seamless interfacing between 5V and 3V circuits. Additionally, certain output configurations protect scenarios like VCC being 0V or the output voltage surpassing VCC. These robust input and output structures are crucial in averting device damage from supply voltage mismatches, input/output voltage disparities, battery backup, and hot insertion.
