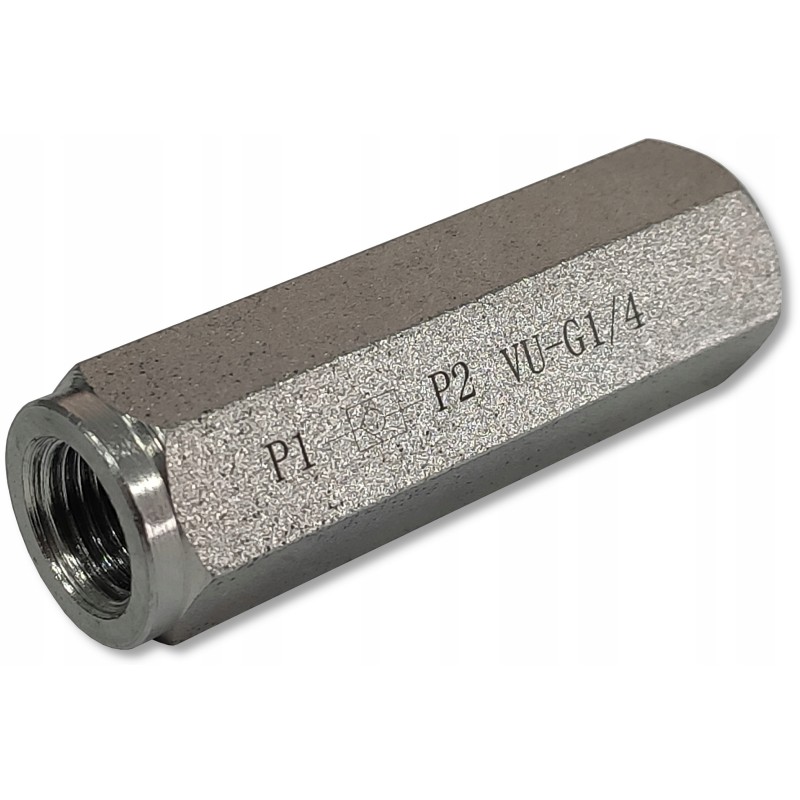

Linear hydraulic check valve 1 4 20l min

Hydraulic Return Valve VU 1/4 20L/min SKRAW-MET CODE: [0324]Polish product - Solidly madeThe valve is used in rounds, cyclopes, forklifts, agricultural and industrial machines and other hydraulically controlled devices.

Linear check valves are those, which allow free flow in one direction and at the same time block it in the opposite direction.

Connect P1 to the power supply and P2 to the receiver. The flow passes freely from P1 to P2 and is blocked in the opposite direction. Technical specifications: Maximum flow: 20 L/min

Internal threads in the body: 1/4' connection port

Permissible maximum pressure: 350 Bar

Pressure opening the flow from P1 to P2 [MPa]: ± 0.4 / 0.7

Permissible ambient temperature: -40'C to + 60'C

Permissible oil temperature: -15'C to +80'C

Oil type: mineral oil-based hydraulic oil

Material: body - galvanized steel

Table of pressures at which the flow in our valves is open:
