Description
74LVC1G Family, Texas InstrumentsLow-Voltage CMOS logicSingle gate packageOperating Voltage: 1.65 to 5.5 VCompatibility: Input LVTTL/TTL, Output LVCMOSLatch-up performance exceeds 100 mA per JESD 78 Class IIESD protection exceeds JESD 2274LVC Family
Product Details
150(Allparts)526173

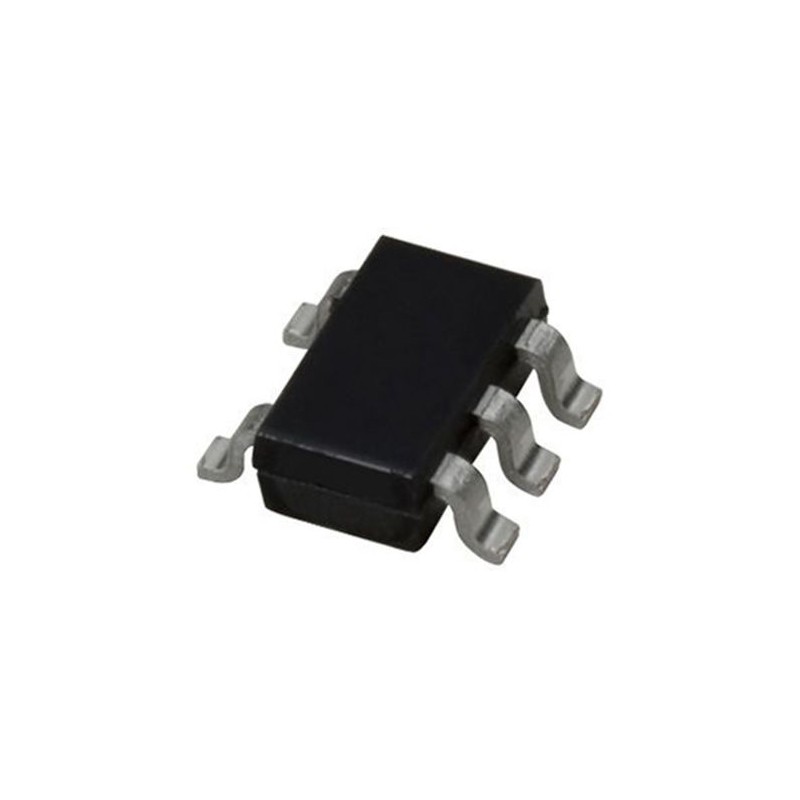

SN74LVC1G125DCKR
10 Items
Data sheet
- Manufacturer
- TEXAS INSTRUMENTS
- Dimensions
- 2 x 1.25 x 0.9mm
- A-Supplier
- Allparts-UK/15/R-15
- Mounting Type
- Surface Mount
- Input Type
- Single Ended
- Output Type
- 3 State
- Pin Count
- 5
- Package Type
- SC-70
- Maximum Operating Supply Voltage
- 5.5 V
- Minimum Operating Supply Voltage
- 1.65 V
- Number of Channels per Chip
- 1
- Logic Family
- LVC
- Logic Function
- Buffer, Line Driver
