Description
74xx Family, Texas InstrumentsStandard TTL logicOperating Voltage 4.75 to 5.2574xx Family
Product Details
10(Allparts)306336

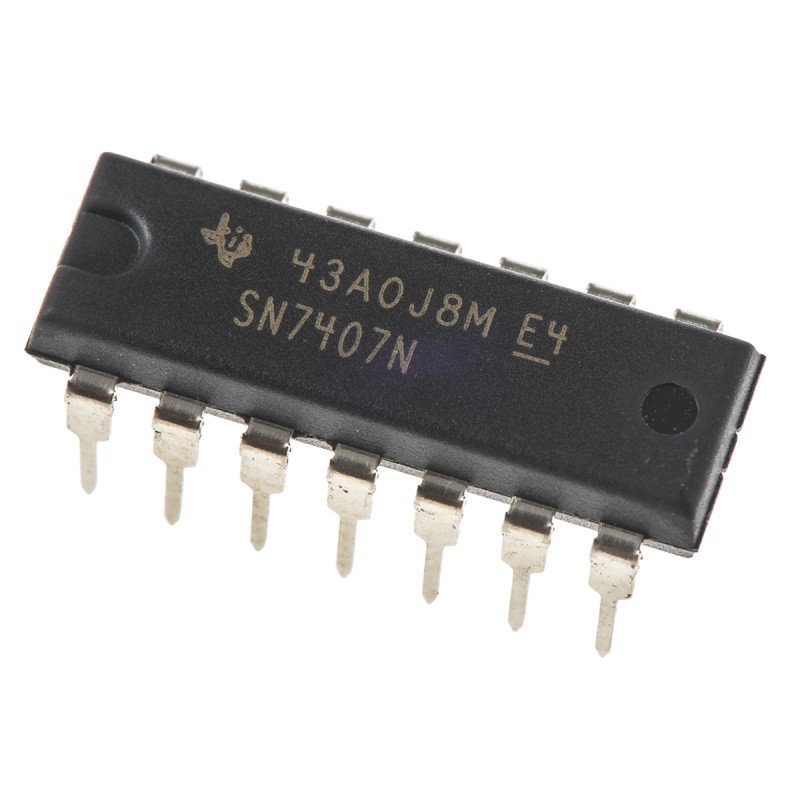

SN7407N
10 Items
Data sheet
- Manufacturer
- TEXAS INSTRUMENTS
- Dimensions
- 19.3 x 6.35 x 4.57mm
- A-Supplier
- Allparts-UK/15/R-15
- Mounting Type
- Through Hole
- Input Type
- Single Ended
- Output Type
- Open Collector
- Pin Count
- 14
- Package Type
- PDIP
- IC Type
- Buffer & Line Driver IC
- Maximum Operating Supply Voltage
- 5.25 V
- Minimum Operating Supply Voltage
- 4.75 V
- Number of Channels per Chip
- 6
- Logic Family
- 74
- Logic Function
- Buffer, Driver
