Set of reversing cameras 4 pcs. split monitor 12 24v

HD reversing camera 4pcs monitor 10' divided 12V 24V cables 20mb TIR combine harvester MIZAR number: 76336

HD reversing camera 4pcs monitor 10' divided 12V 24V cables 20mb TIR combine harvester* Set of 4 cameras with a 10' LCD display

* Four dedicated beam lengths 20 meters each

* Remote control

* High precision and quality of workmanship

* Safe and reliable vehicle maneuvering

* Monitor mounting bracket included in the set

* Easy and quick installation

* Night mode - visibility at any time of the day!

* Resistance to vibrations and shocks

* High tightness class - IP69K

* Wide voltage range - 12 - 24V

* Compatibility with various types of machines

* Manual in Polish

* Take care of your safety and that of other users

* Control over the surroundings machines

A ready-made set tailored to your machine!

Are you tired of uncertainty when maneuvering your machine? Would you like to have full control over every movement to ensure safe working conditions for yourself and others? The offered set of HD reversing cameras is the answer to your needs!

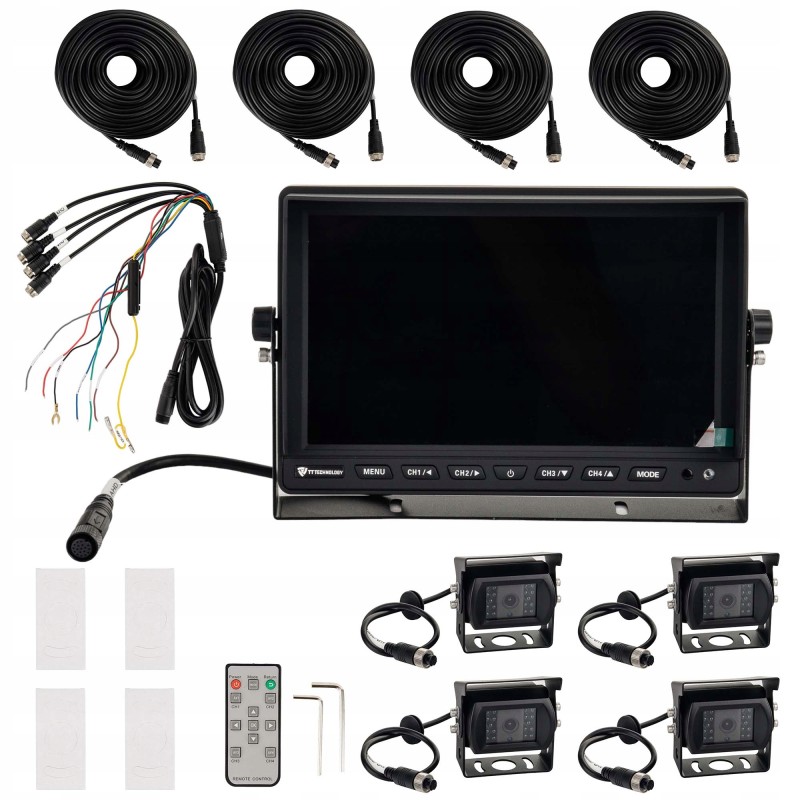

Enable safety at full speed thanks to an extensive set of reversing cameras with a 10' color monitor! Modern agricultural machines, tractors and combines require precise control, which in turn requires excellent visibility around the vehicle. A set of reversing cameras is the perfect solution for every operator who values safety and efficiency of work. The set includes the following elements:

1x 10' monitor with the function of dividing the image into 4 segments and a holder

4x HD reversing camera, night mode, shockproof

1x Cable for connection to the vehicle's electrical installation

4x Camera extension cable 4PIN 20m

1x Remote control

1x User manual in Polish

1x Allen key

You no longer have to choose which reversing camera you will need the most! The extensive set allows you to connect up to 4 cameras to one monitor. This gives you full control over your machine's surroundings from multiple perspectives.

Do you need a view from the rear of your vehicle? Or maybe from the side or front? Now it's possible! The innovative system allows for flexible placement of cameras in places chosen by you, and all images will be displayed on one 10-inch monitor, which has been enriched with a number of functions that allow you to fully adapt the display to your individual needs.

Technical information:

Monitor matrix: 10"

Monitor dimensions with mounting: 285 × 183 × 74mm

System: PAL/NTSC

Resolution: 1024RGBx600

Brightness: 300cd/m2

Voltage: 12-24V

Viewing angle: 120˚ - 140˚

Camera tightness class: IP 69K

Class anti-shock: 4G

Camera backlight: 0.5 Lux + 18 IR diodes for night observation

Connection: 4 PIN/RCA

What makes the set we offer unique?

10' monitor with the function of dividing the image into 4 segments provides comprehensive control over the surroundings machines, so you can observe four areas at the same time. This saves time and increases work efficiency. If the situation requires it, you can switch to the view of a specific camera at any time!

What's more, the set includes a remote control, which will allow you to freely transform the view from camera to camera, without having to move around the machine.

High HD image quality and night mode with 18 IR LEDs - visibility at any time of the day! HD cameras guarantee excellent image quality. Equipped with a night mode with 18 IR LEDs, they ensure visibility even on the darkest nights. Now working at night or in poorly lit places will no longer be a problem. A monitor with a resolution of 1024RGBx600 with a 10-inch color display guarantees the highest image quality. Additionally, an HD camera with a 140-degree viewing angle allows you to conveniently monitor the area around the machine. The set also includes 4PIN cables, which offer a stable and reliable connection.

The camera set is resistant to weather conditions - the camera's tightness class is IP 69K and the anti-shock class is 4G, which means that the cameras are resistant to dust, moisture and shocks.

Tips:

It is important to take proper care of the camera, so we recommend regular cleaning, but not to use agents prone to corrosion.

Designations of individual PINs (1 - "+", 2 - "-", 3 - free PIN, 4 - video image ) facilitate installation and connection of the camera.

An irreplaceable set of reversing cameras - the key to safe and effective maneuvering!

Your work will take on a new dimension, and performing even the most complex maneuvers will be child's play. Thanks to advanced reversing cameras, you will gain full control over the surroundings of your machine, eliminating any visibility restrictions.

MIZAR number: 76336
