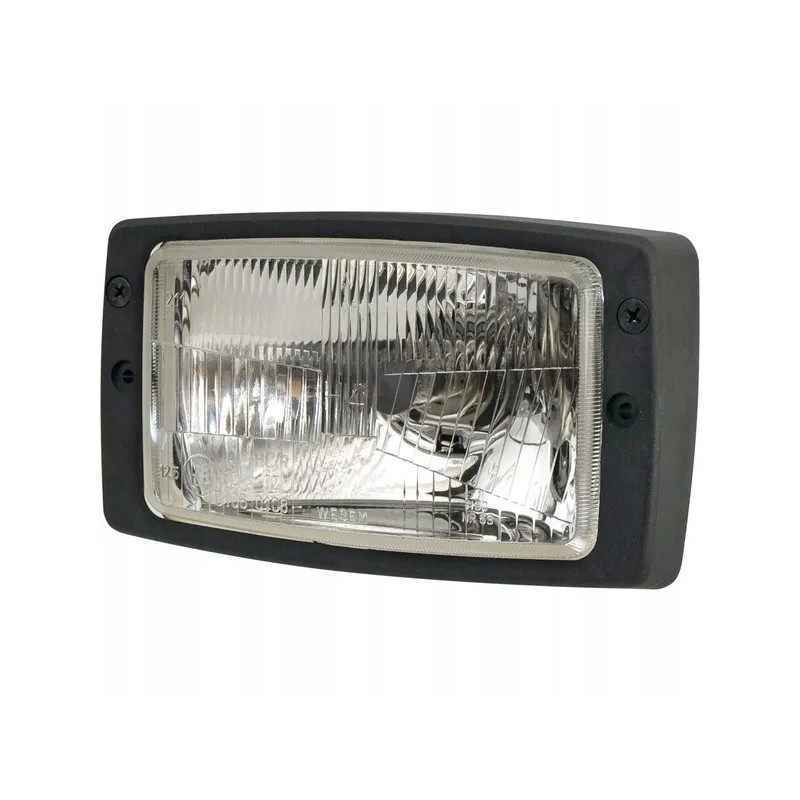

1400661201 reflector with frame

1400661201 Headlamp with frameTechnical information

It is intended for installation in factory-prepared places or for installation in the front recesses of the vehicle. Particularly recommended for tractors and slow-moving vehicles. Lights: passing and driving lights.

Construction:

metal optical element

glass cover

housing and frame made of black plastic

spring element for mounting the main bulb

main bulb gasket

Parameters:

Number of markings for driving lights (in the H4 version), determining maximum luminous intensity is 12.5 (i.e. approx. 60 lx at a distance of 25 m).

Application:

Zetor, Model 2002, Proxima, Forterra, Super, Super Eko, Classic Eko

Ursus, 4505, 5714, 5314, 6014

Pronar, MTZ 1221

Escort, 335Std, Duo, 450, Farmtrac.

The lamp 1400-661201 is sold with a bulb.

The lamp 1400-661200 is sold without a bulb.

Bulb technology Halogen

Rectangular shape

Function Vehicle headlights

Height 102 mm

Length (depth) 184 mm

Installation position Front, Left, Right

Mounting method Screw

Light color White

Application

Universal

Agricultural tractors

Trucks

Construction machinery

Fits the Universal brand of machines/vehicles
