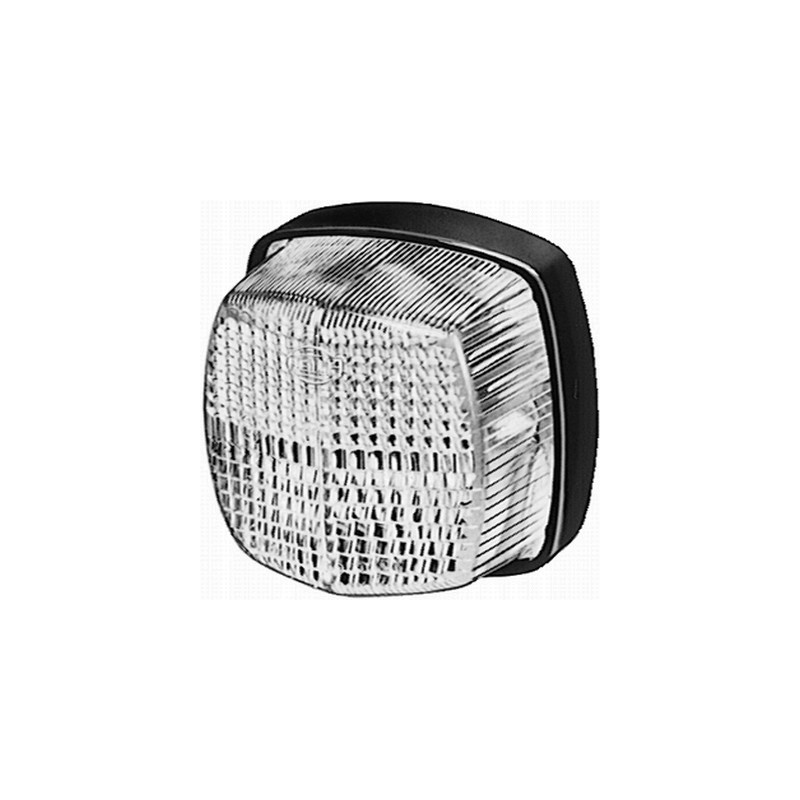

Hella marker lamp 2pf 004 081 001

Subject: Position lights

The offer applies to (quantity): 1 piece

Catalog number: 2PF 004 081-001

Condition: Original goods, brand new and packed

Technical information for 2PF 004 081-001 Supplementary article/supplementary information 2: without bulbs

Length [mm]: 62

Lamp function: with position light

Quantity: 2

Housing color: black

Reflector glass color: transparent

Number of light functions: 1

Assembly/disassembly must be performed by professionals!:

Voltage [V]: 12

Voltage [V]: 24

Control marking: ECE-R7

Power consumption [W]: 5

Lamp design: Halogen

Lamp type: C5W

Mounting type: for horizontal mounting

Registration type: E-type checked

Type of protection (IP code): IP5K9K

Mounting method: Fixture

Installation method: Screw connection

Installation side: left

Installation side: right

Width [mm]: 62

Height [mm]: 42

OE codes / Comparison numbers / Replacements 0595: ,

2PF: 004 081-001,

580: ,

AEBI: 18-3410532,

AGCO: LM98105017, LM98405017,

ATLAS COPCO: 1627430.,

AUWÄRTER: 1503.817.00,

CASE: IH 1960733,

DEMAG: 42380912,

EVOBUS: 000 825 06 03, 372 826 00 47, 6 290 010 089 1 14, A0008250603,

HELLA: 004 081-001, 004081001, 2PF 004 081-001, 2PF 004 081-007, 2PF 004 081-008,

HOBBYCAR: 260147, 6501030087,

HYMER: 9952930, 9975206, 9975206 (A 50),

HYSTER: 1536382, S0093425-60,

MAFI: 000,

MAN: 1503.817.00,

MERCEDES-BENZ: 000 825 06 03, A 000 825 06 03,

NEOPLAN: 1503.817.00,

Oamp,K: 1960733,

RENDERS: 99700205,

SCANIA: 1 906 655,

TEREX: 1627430, 42380912, 5350638910,

VDL: 30047833,

ZIEGLER: 150397,

HELLA 2PF 004 081-001

HELLA 2PF 004 081-007

Select parts according to the TecAlliance catalog and the ASO VIN catalog. In one car model, there may be different variants of a given part. In case of uncertainty about the correct selection of parts, verification is recommended according to: VIN number
