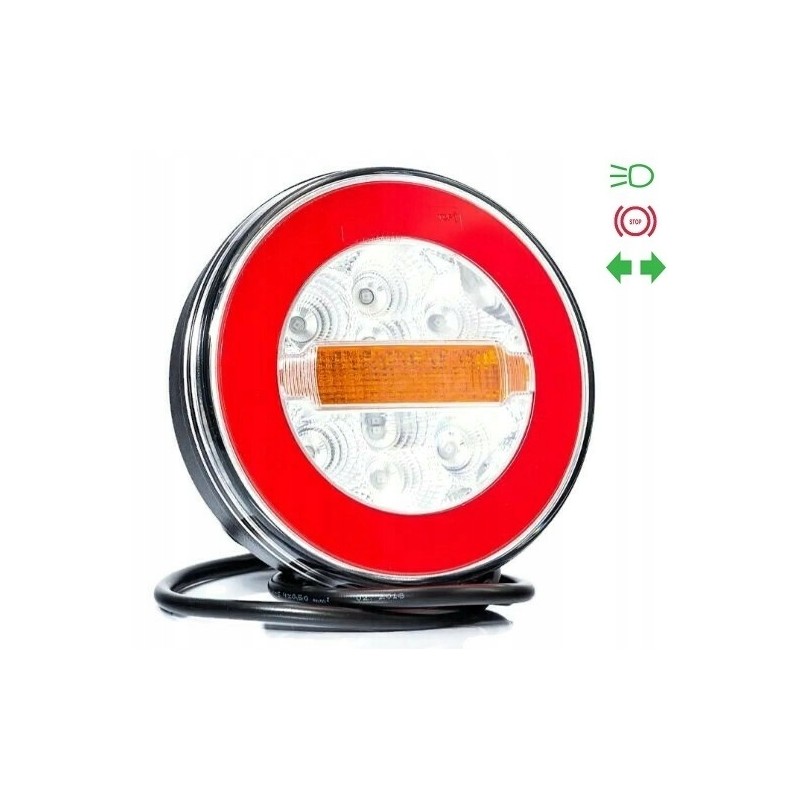

FT 113 LED Fristom rear lamp, combined

Combined LED rear lamp by FRISTOM, model FT-113 LEDUNIVERSAL LAMP RIGHT

LEWA12V/24V Below is a video of the lamp presentation

https://tiny.pl/742kg

Paste the link into your browser and see for yourself

HERMETICALLY CLOSED LAMP

PRODUCT FEATURES: LEFT OR RIGHT 3-FUNCTION LAMP

E9 APPROVAL

DIMENSIONS: 140x50.5mm

SPACE OF MOUNTING SCREWS M6: 45mm

VOLTAGE 12/36V

LIGHT SOURCE - LED DIODES

CONNECTING CABLE 100 cm

VERY LOW POWER CONSUMPTION

LAMP HERMETICALLY CLOSED

SHOCK-RESISTANT LAMP CONSTRUCTION

LAMP FUNCTIONS LIGHT POSITION REAR LAMP

BRAKE LAMP

TURN SIGNAL LAMP

LAMP PARAMETERS :

supply voltage range: 12-36V DC

operating temperature: -40°C to +55°C

the lamp is resistant to weather conditions

the lamp is hermetic

Power consumption:

– position light: 12V/24V = 0.1A/ 0.1A

– brake light: 12V/24V = 0.08A/0.08A

– turn signal light: 12V/24V = 0.08A/0.08A

Power consumption (rated power):

– position light: 12V/ 24V = 1.2W/2.4W

– brake light: 12V/24V = 1W/2W

– turn signal light: 12V/24V = 1W/2W

The item from the auction can be found in the place marked No. 4 in the diagram next to it.

Marking strips yellow (bulbs or LEDs) or yellow reflector

White side markers (bulbs or LEDs) or white reflector

Reflective triangle - if there is no such, a combination lamp with a built-in reflective triangle.

Combination lamp (bulb or LED) position, indicator, stop, fog , license plate lighting (reversing lights in the 13 PIN option)

Fog lamp (bulb or LED) if it is not in the combined lamp.

License plate lighting (bulb or LED) if it is not in the complex lamp.

Outer marker lamp on rubber boom (white and red, light bulb/LED).

Plastic or metal fender (galvanized)

Box with electrical cube for separating cables (hermetic)

7 PIN plug - 7x1mm2 cable, 13 PIN - 8x1mm2 cable.

Plug holder.

Cable safety.

Hitch (hitch pull in accordance with the registration certificate). Pay attention to the type of drawbar and screw spacing.

The price is for one piece.
