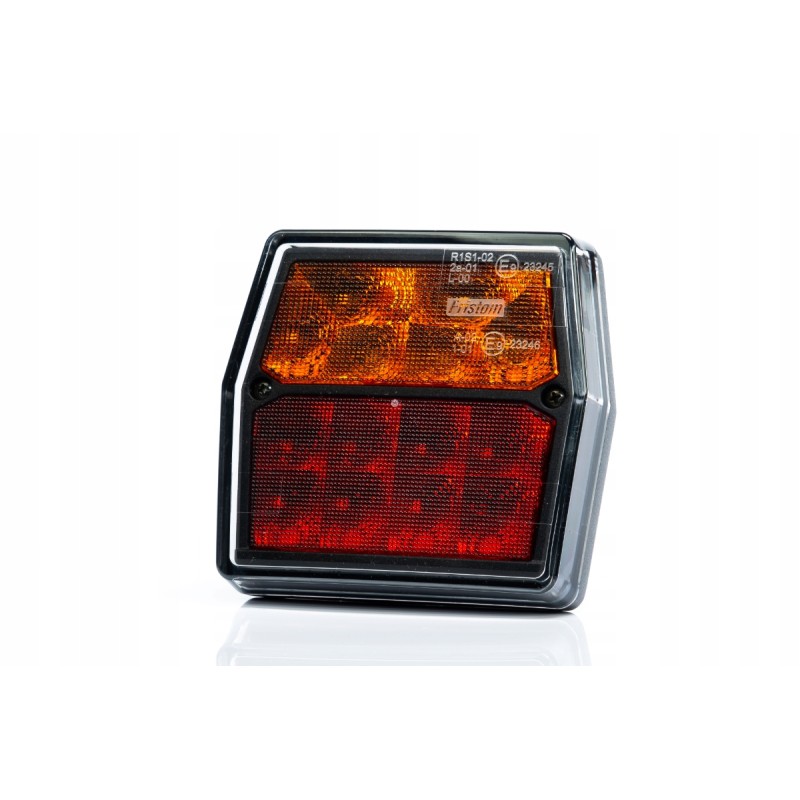

3-function LED rear lamp for tractor and trailer

series of extremely stylish and exceptionally thin rear lamps - FT-222 LED has 3 or 4 functions (FT-222 T LED version - with license plate lighting). It is characterized by high efficiency and low power consumption. The lamps are fully hermetic. They have a protection level - IP 68 - which guarantees complete dustproofness and high waterproofness class. The product's structure is resistant to shocks and mechanical damage - PC cover.

FT-222 T LED lamps provide the ability to illuminate the board - single and double row.

They have European E9 approval and an electromagnetic compatibility certificate - EMC.

Installation - 1 m cable

3 functional stop/item/direction indicator/

are equipped with a protection against reverse polarization.

Lamp in two options: with license plate lighting and without lighting license plate

LED lamp - low power consumption

European consumption

European approval E9

EMC electromagnetic compatibility

12V cable output

Lamp structure resistant to shocks and mechanical damage - PC lampshade

Electrical protection against reverse polarity

Lamp depth is only 30 mm

Vertical and horizontal mounting possible

Approval for single- and double-row license plate lighting

LAMP PARAMETERS:

- voltage range power supply: 12-15V DC

- operating temperature: -40°C to +55°C

- lamp resistant to weather conditions - the lamp is hermetic IP68

POWER CONSUMPTION:

- position light + license plate light: 12V = 0.1A - version without license plate light: 12V = 0.05A

- brake light: 12V = 0.2A

- turn signal light: 12V = 0.2A

POWER CONSUMPTION (NORMAL POWER):

- position light + license plate light: 12V = 1.2W - version without license plate light: 12V = 0.6W

- brake light: 12V = 2.4W

- turn signal light: 12V = 2.4W

When placing an order, please specify in the information whether the order concerns a lamp with with license plate light or without license plate light!
