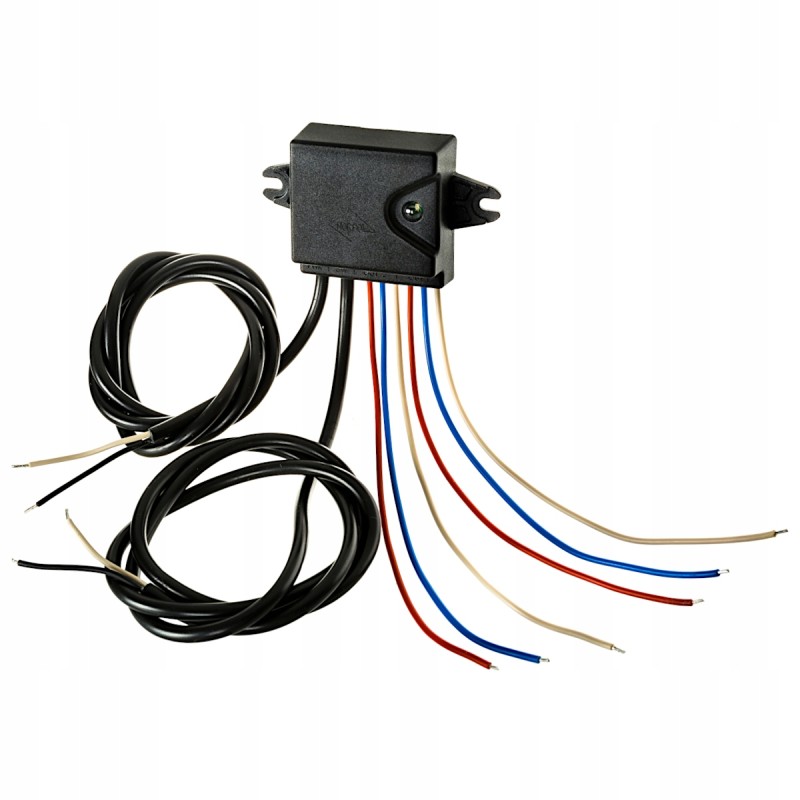

Synchronizer for warning lamps without remote control

Synchronizer for warning lamps without a remote control Horpol MIZAR number: 48582

Synchronizer for warning lamps without a remote control Horpol * The product allows you to control the lamp flashes.

* The synchronizer eliminates the problem of random flashing of LED lamps.

* A total of up to 10 warning lamps can be connected.

* The channels do not have to be used together (e.g. one lamp can be connected to one channel and four lamps to the other channel).

What operating modes does the synchronizer have?

The product offers two lighting functions:

1. All lamps flash simultaneously - to achieve this effect, connect the lamps to one channel ("OUT 1" or "OUT 2")

2. The lamps work alternately - to achieve this effect, connect the lamps to both channels Supply voltage: 12/24V

Note: The switch is not included in the set

Outputs:

PWR - for power supply (white - ground, black - '+').

SW - for connecting a monostable switch (change of operating mode)

OUT 1 - channel 1 for connecting synchronizers LED lamps (the colors of the wires correspond to the colors of the lamp wires)

OUT 2 - channel 2. for connecting synchronizing LED luminaires (the colors of the wires correspond to the colors of the lamp wires).

Cable specifications:

2 wires 2 × 0.75 mm2, 1 m, for power supply and for connecting the switch.

6 wires 1 × 0.75 mm2, 0.2 m, for connecting warning lamps (3 wires per channel).

Intended use:

- HOR 84 warning lamps - LDO 2274, LDO 2277

- warning lamps HOR 78 – LDO 2258, LDO 2259, LDO 2260

and others where the light source is LED diodes

Why is it worth choosing a Horpol product?

Horpol is a Polish company with extensive experience, engaged in the continuous production of lamps, reflective devices and plastic elements since 1979. The manufacturer's extensive offer includes solutions addressed to drivers of agricultural machinery, buses, delivery cars and trucks. Horpol is constantly introducing solutions that guarantee maintaining a high level of the offered products while maintaining rigorous processes and the ISO 9001-2015 standard.

By choosing a product with the Horpol logo, you ensure comfort and, above all, safety and visibility on the road!

MIZAR number: 48582
