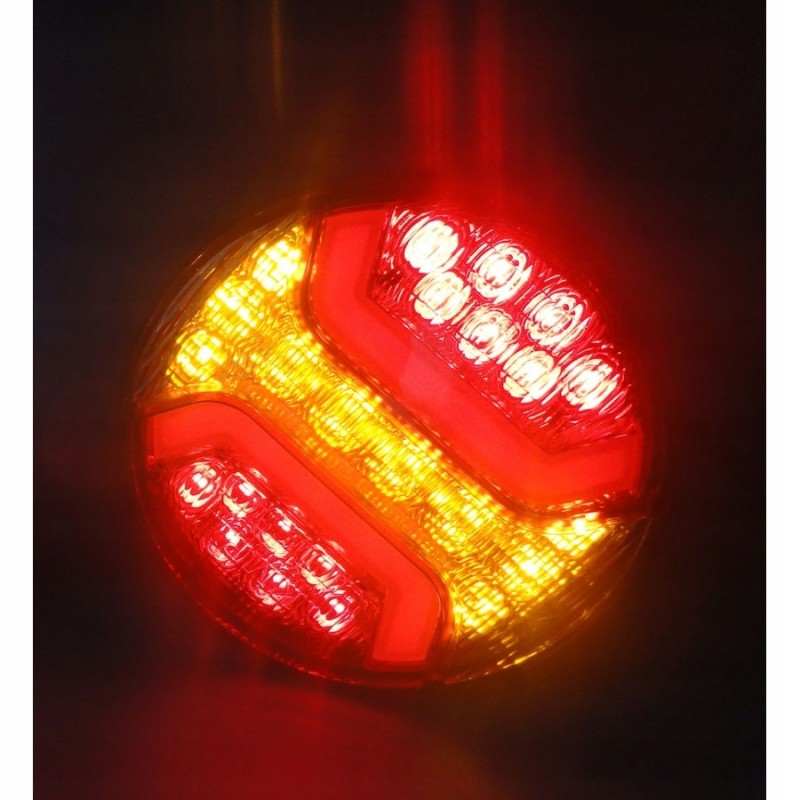

LED rear lamp 3 functional 12 24v 32led l1837

The 32 LED KMR2 3-function rear lamp, number L1837, has the following functions: position, stop, direction. It has 34 LEDs. L1837 has a power consumption of 1.5 W, 2 W, 1.8 W. L1837 is a certified product. In accordance with standards such as ECE R6, ECE R7, ECE R10. Moreover, it is made of the following materials: Lampshade: PMMA+PC, Housing: ABS+PC. The 32 LED KMR2 3-function rear lamp is mounted with screws. The voltage is 12V/24V. The product is packed in the following configuration dimensions. cards: 130x130x70 mm, lamp weight: 200 g,

Instructions for use · Install only in specialized workshops · The connection of the lamp with the vehicle installation must be insulated with heat shrink tube or possibly insulating tape in order to prevent water and moisture from getting into the copper lamp wire, which may damage the electrical system. For lamps with a plug, insert the plug securely. Do not cut off the tinned wire ends.

· Lamps must only be installed in accordance with UNECE regulations

Product specifications Number of LEDs: 34

Material: Lampshade: PMMA+PC, Housing: ABS+PC

Mounting: screws

Functions: position, stop, direction

Power consumption: 1.5 W, 2 W, 1.8 W

Voltage: 12 V/24 V

Certificates: ECE R6, ECE R7, ECE R10

Packaging: dimensions. cards: 130x130x70 mm, lamp weight: 200 g,

CABLE: 250 mm
