Reversing camera kit monitor 7 hq heavy 12v 24v

Don't be fooled by cheap sets! In cheap sets, the monitors have ordinary feet glued to the dashboard with adhesive tape, so driving a car on an uneven surface may cause the monitor to detach and cause an accident, they also have a twice lower image resolution of 400x200, which may make the view from the camera seem blurry. They have a 12V power supply, which when connected to a truck may pose a risk of fire in the car, and incorrect installation (connecting to a higher voltage) will void the warranty. Cheap cameras, apart from the fact that they can only operate on 12V vehicles, often lose their tightness after a few months, and the water condensing inside causes corrosion of the electronics and fogging of the lens. In the cheap set you will only get a single 5 m video cable:(

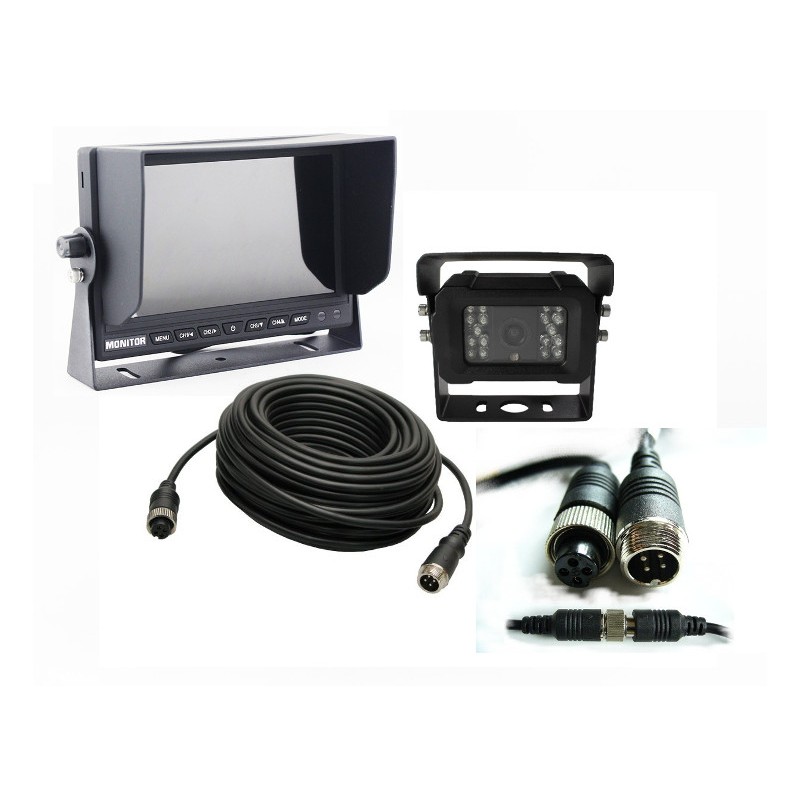

PROFESSIONAL SET:

Colorful 7' HD HEAVY DUTY monitor with a metal frame and sun visor

Colorful reversing camera in a metal housing

10 meters of video cable with 4-PIN power

Set intended for:

agricultural machines, combines, excavators, bulldozers, snow plows , garbage trucks, coaches, buses, trucks and large trucks, campers, ambulances, etc.

UNIVERSAL 12V and 24V POWER SUPPLY

Large 7' LCD monitor with a metal holder from the HEAVY DUTY series ( reinforced resistance) is perfect for difficult conditions. The sun visor ensures good vision in unfavorable lighting conditions in the cabin.

The monitor has an additional control cable, thanks to which it automatically switches to the view of the reversing camera when reverse gear is engaged .

Two cameras can be connected to the monitor.

Monitor technical data:

support for 2 AV devices (AV1/AV2)

wide format TFT display 16:9

7-inch LCD matrix by SHARP

resolution 800 x 480

image rotation function horizontally and vertically

functional simple MENU

systems: PAL/NTSC

power consumption: <, 6W

power supply: DC 12V and 24V

color: black

Camera

18 high-performance IR LEDs enable the camera to be seen clearly even in complete darkness. The camera has a handle that can be adjusted in one plane and an adjustable visor that protects the lens against precipitation and prevents the camera from being blinded by strong sunlight.

The camera is mounted in the upper part of the rear of the vehicle.

Technical data cameras:

System: PAL/NTSC

Sensor: SONY

Lens viewing angle: 120 degrees

Mirror function: Image seen as in the rearview mirror.

IP protection level: 67

Video output: 1.0Vp-p, 75 ohm

Power supply: 12V and 24V (via monitor)< p>

Current consumption: 130mA-150mA (max.)

Temp. operation: -20 to +75°C

Number of infrared diodes: 18 pcs

The set includes a ten-meter cable (video and power) in the 4-PIN system ensuring a solid and tight connection cameras with monitor. The connectors have metal nuts and an additional rubber seal to prevent moisture from entering the socket.

We also sell other cable lengths.
