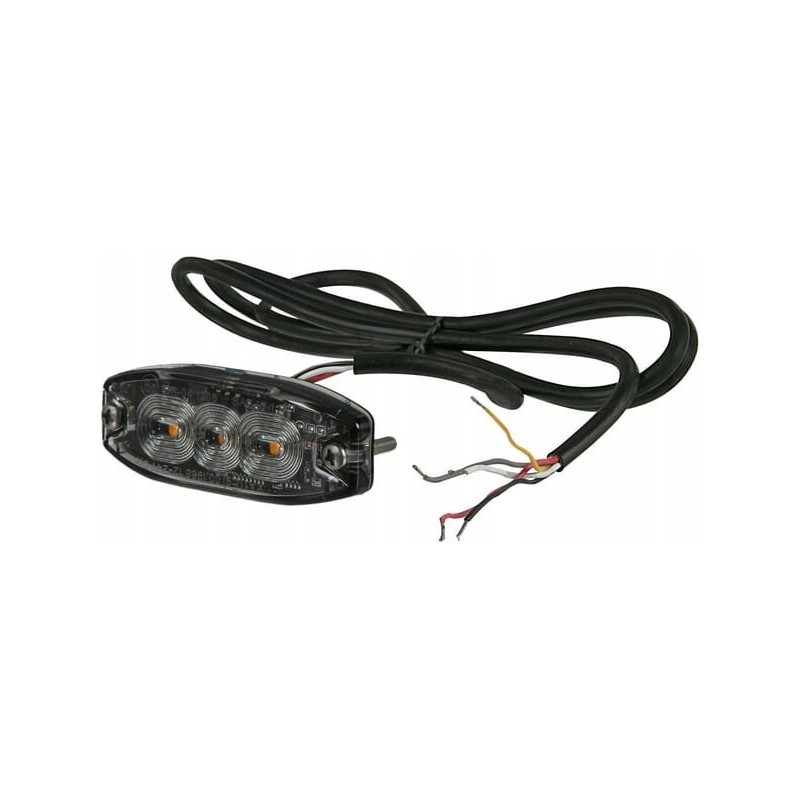

Amber warning lamp 3 LED LA20073

Warning lamp, amber, 3 LED Parameters

Part number: LA20073

Unit: piece

Manufacturer: Kramp

EAN: 8719493038088

Shape: Rectangular

Function: Flash

Light color: Amber

Bulb technology: LED

Mounting type: Screw on

Nominal voltage - range: 10-30 V

Power: 6.7 W

Length: 82 mm

Width: 30 mm

Height: 9 mm

Cable length: 1.5 m

Number of lighting modes: 19

Insulation class: 67

Fits the machine/vehicle brand: Universal

Properties

- Operating voltage: 12-24 VDC

- Average power consumption: 1.2 A at 12 VDC / 0.6 A at 24 VDC

Technical information

- ECE R65 approval class I (double flash)

- EMC approval R10.04

Mounting position

- Front

- Back

ECE standard

- R65

- R10

Application

- Agricultural tractors

- Trailers

- Trucks

- Cars

- Construction machinery

- Road works

Additional information

- Low profile

- IP 67

- Multiple flash function

- Function switch via cable (yellow with red accent).

- Memory

- Possibility to synchronize multiple units via the yellow cable
