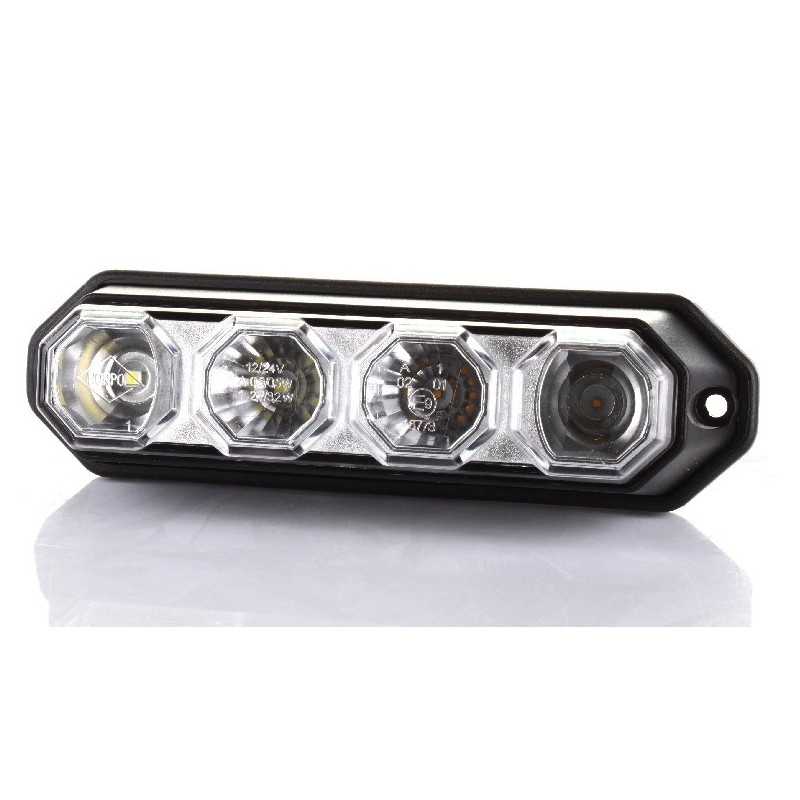

Combined front lamp 4 LED 12v 24v horpol

Dual-functional front lamp 4 LED 12V 24V Horpol MIZAR number: 42685

Dual-functional front lamp 4 LED 12V 24V Horpol Lamp functions:

Front position light

Direction indicator

Technical information:

Manufacturer: Horpol

Homologation: E9 ECE R06/R07

Supply voltage : 12/24V

Diode lamp (LED): yes

number of LEDs: 4 (2 white, 2 orange)

Length: 147mm

Height: 42mm

Thickness: 37mm

Spacing of mounting holes: 132mm

Operating temperature range: from - 30°C to +50°C

Cable: 3×0.5mm2, cable length 1m

Mounting side: universal

Front position light / turn signal: yes

Lamp power:

Turn indicator: 2.7 / 3.2W

Position light : 0.3 / 0.5W

More detailed dimensions can be found in the attached graphic!

Wire markings:

White - ground

Red - turn signal

Blue - front position light

Why is it worth choosing a Horpol product?

Horpol is a Polish company with a rich experience, producing lamps, reflective devices and plastic elements since 1979. The manufacturer's extensive offer includes solutions addressed to drivers of agricultural machinery, buses, delivery cars and trucks. Horpol is constantly introducing solutions that guarantee maintaining a high level of the offered products while maintaining rigorous processes and the ISO 9001-2015 standard.

By choosing a product with the Horpol logo, you ensure comfort and, above all, safety and visibility on the road!

MIZAR number: 42685
