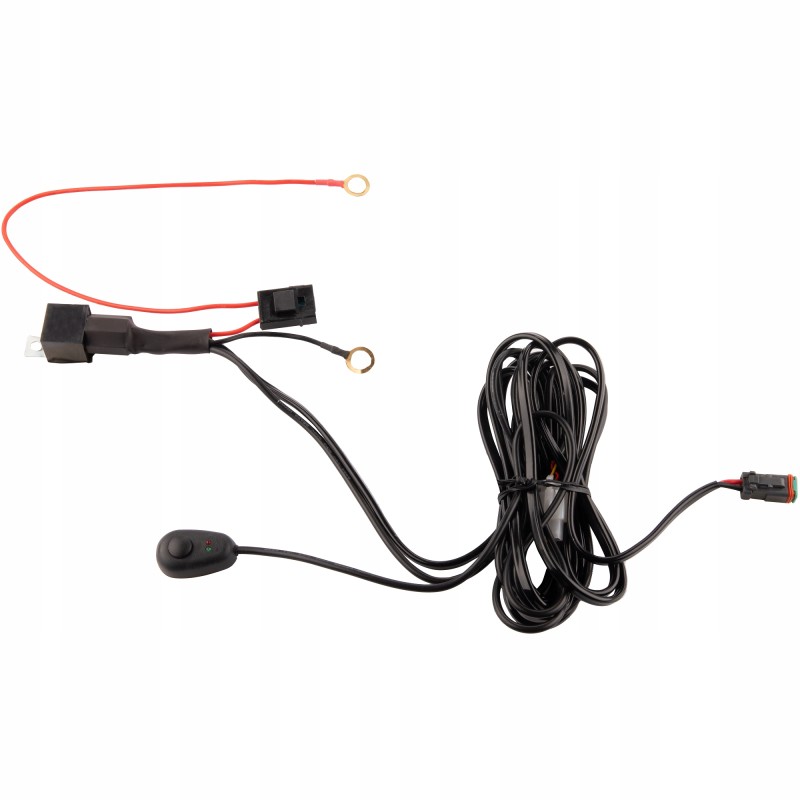

3m cable bundle for one work lamp

CABLE HARNESS FOR CONNECTING A WORK LAMP WITH A FUSE, RELAY AND ON-OFF SWITCH Production:

Original product of the Hydrolider brand, symbol: 3.00.1.99.001

Application:

Versatile use, including: for connecting one work lamp in agricultural, construction and forestry vehicles and machines, as well as as work and additional lighting in trucks, buses, campers, caravans, boats and yachts.

Used to connect lighting in utility rooms, garages, workshops , gazebos, gardens and yards.

Technical data:

Number of outputs for connecting a work lamp: 1

Lamp connection: DT plug

Length: 3000 mm

Maximum power consumption of the lamp: 120 W

Voltage: 12V DC

Relay: 40A

Fuse : 30A

Switch: on - off

Packaging: dimensions 100x100x100 mm

Weight: 250 g

in order to properly install and use the lamps, it is recommended to read the instructions to ensure safe use and durability of the product

the device must be installed in a place inaccessible to children

in the case of changing the existing filament/halogen lighting to LED lighting, no changes are required in the installation, apart from replacing the lamps themselves. When installing new/additional LED lighting, the current carrying capacity of the switch to which the lamp is to be connected should be verified. If the current carrying capacity of the switch to which we want to connect LED lighting is exceeded, an additional relay should be used
