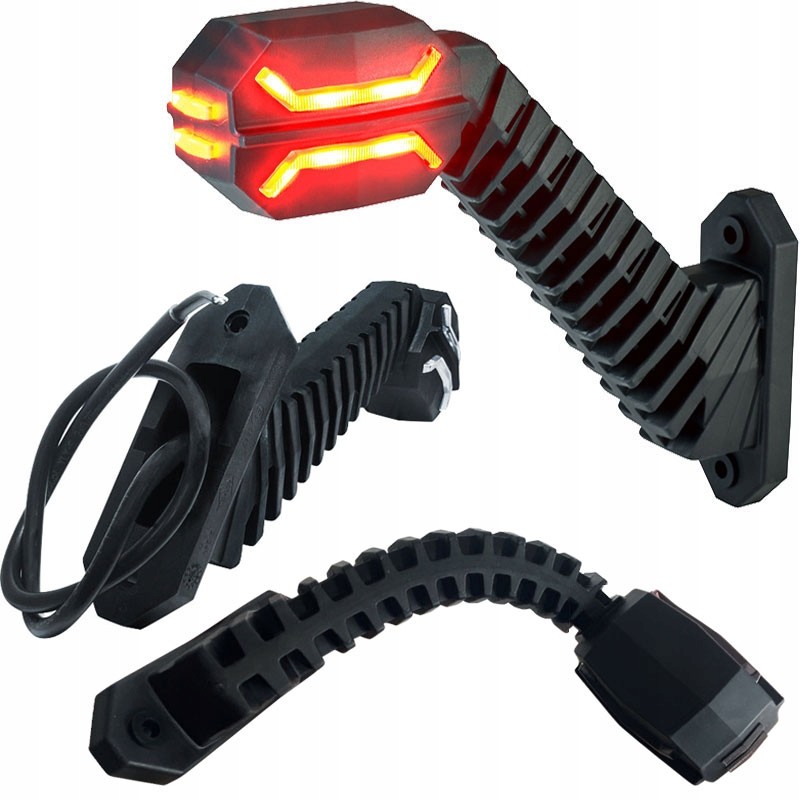

Left marker lamp, 3-function LED, for a trailer

LEFT 3-FUNCTION LED CLEARANCE LAMP Specification: Lamp group HOR 134

Number of LEDs 16

Marker lamp category

Rear position light

Supply voltage 12/24 V

Rated power 1.9 W

Operating temperature range from -30°C up to +50°C

Cable 2×0.75 mm2, cable length 0.5 m

Side marker light

Left mounting side

Front position light

Boom

Diode lamp (LED)

IP 68 tightness class

The lamp is fully hermetic (compliance with the degree of protection against moisture IP 68), and the operating temperature range is from -30 degrees C to + 50 degrees C.

LD 2994 lamp functions:* rear position light (red light color) - 6 diodes

* front position light (white light color) – 6 LEDs

* side marker light (orange light color) – 4 LEDs

Dimensions: Length: 200 mm

Height: 179 mm

Width: 50 mm

Bolt spacing: 78 mm

← APPLICATION → LED (diode) and bulb lamps intended for illuminating vehicles, trucks, semi-trailers, tow trucks, tractors and other agricultural and construction vehicles. They fit Schmitz, Krone, Wielton, Koegel semi-trailers.
