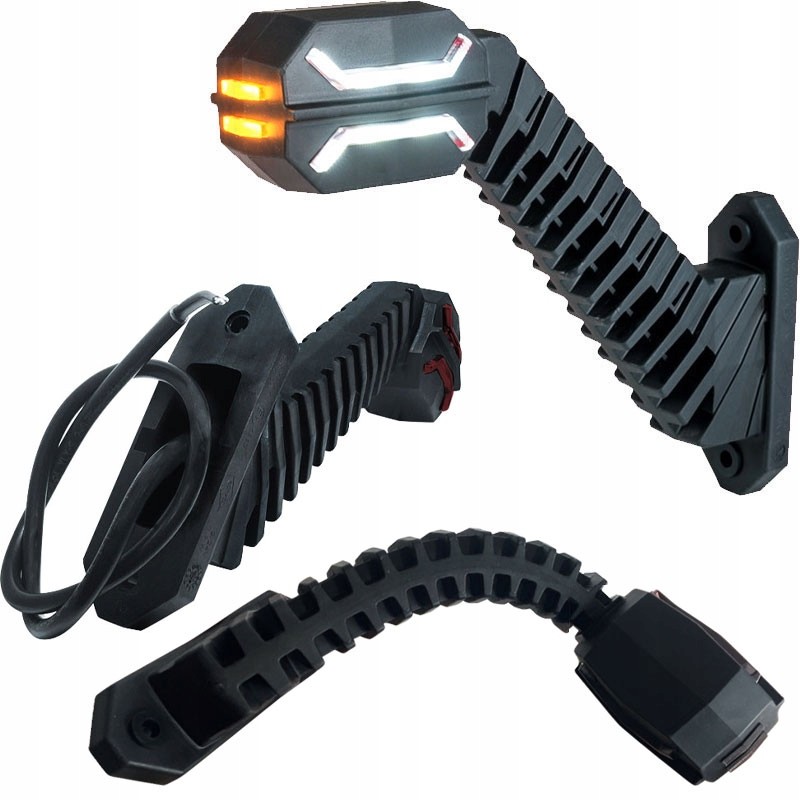

Right side marker lamp on a boom for a trailer

RIGHT CLEARANCE LAMP ON THE TRAILER BOOM Specification: Lamp group HOR 134

Number of LEDs 16

Marker lamp category

Rear position light

Supply voltage 12/24 V

Rated power 1.9 W

Operating temperature range from -30°C to + 50°C

Cable 2×0.75 mm2, cable length 0.5 m

Side marker light

Right mounting side

Front position light

Boom

Diode lamp (LED)

IP 68 tightness class

The lamp is fully hermetic ( compliance with the degree of protection against moisture IP 68), and the operating temperature range is from -30 degrees C to + 50 degrees C.

Dimensions: Length: 200 mm

Height: 179 mm

Width: 50 mm

Screw spacing: 78 mm

Functions of the LD 2995 lamp:* rear position light (red light color) - 6 diodes

* front position light (white light color) - 6 diodes

* side marker light (orange light color) - 4 diodes

← APPLICATION → Lamps LED (diode) and bulbs intended for illuminating vehicles, trucks, semi-trailers, tow trucks, tractors and other agricultural and construction vehicles. They fit Schmitz, Krone, Wielton, Koegel semi-trailers.
