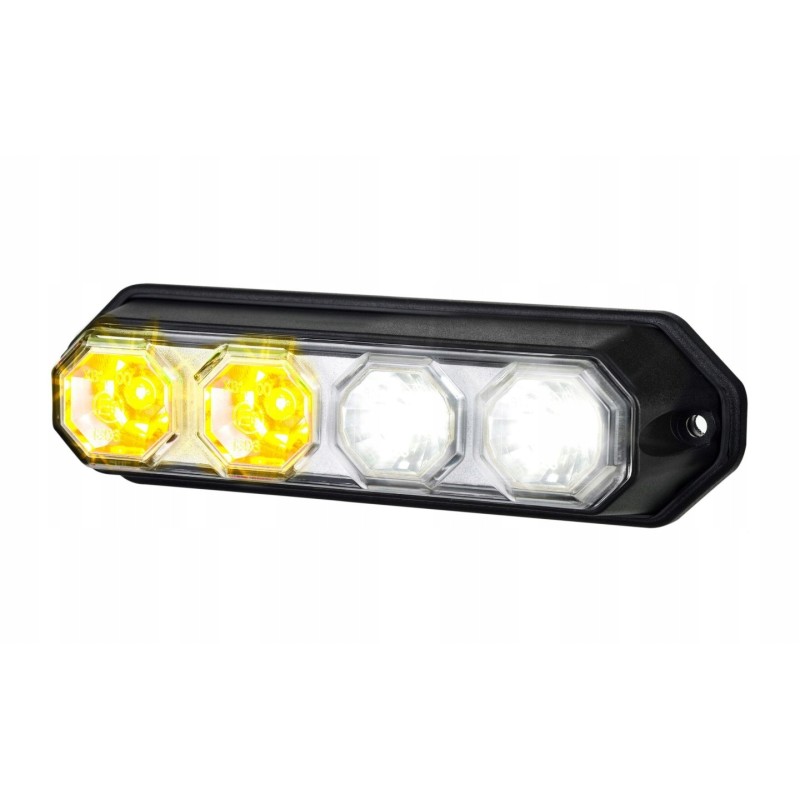

Lzd 2265 front lamp

Dual-function front lamp: front position light and turn signal. The lamp is equipped with 4 LEDs: 2 orange and 2 white Cable marking:

white – mass

red – turn signal

blue – front position light

TECHNICAL DATA

Diode lamp (LED): yes

Lamp category: front unit Lamp group: HOR 78A

Mounting side: universal

Supply voltage: 12/24 V

Rated power: turn signal 2.7/3.2 W, position light 0.3/0.5 W

Cable: 3×0.5 mm2, cable length 1 m

Tightness class: IP 68

Number of LEDs: 4

Front position light: yes

Front turn signal: yes

Operating temperature range: from -30°C to +50°C
