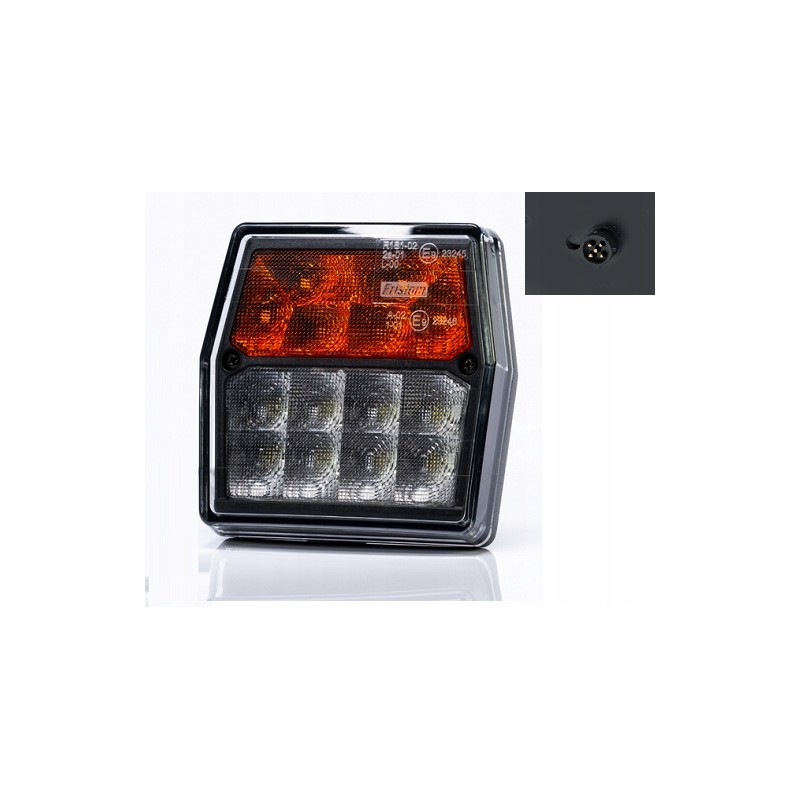

LED front lamp 12v 2 functions, position, direction

12V LED front lamp, 2-functional with position light and indicator light, BAJONET 5PIN connector.

LED headlamp - low power consumption

European E9 approval

EMC electromagnetic compatibility approval

Lamp structure resistant to shocks and mechanical damage - PC cover

Electrical protection against reverse polarity

LAMP FUNCTIONS:

front position light

front turn signal light

LAMP PARAMETERS:

supply voltage range: 12-15V DC

operating temperature: -40°C to +55°C

lamp resistant to weather conditions

the lamp is hermetic

Current consumption: – position light: 12V = 0.1A

– turn signal light: 12V = 0.2A

Power consumption (rated power): – position light: 12V = 1.2W

– turn signal light: 12V = 2.4W

Dimensions:

width: 99.7mm

height: 92.7mm

width: 30mm
