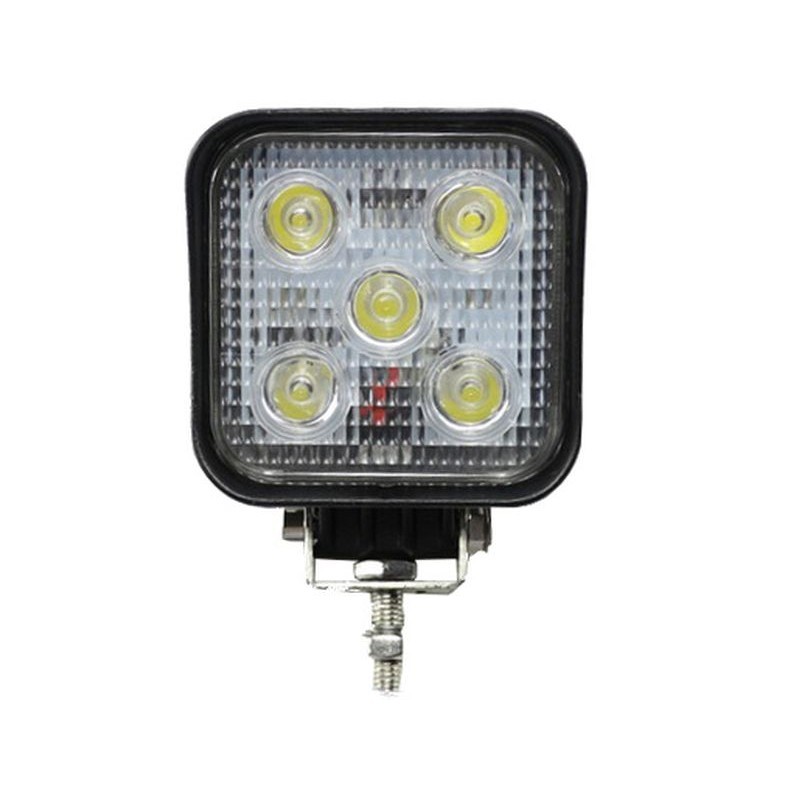

WORKLIGHT square
LED 12/24 V
It is used to illuminate places around vehicles, tractors,
slow-moving vehicles and any places where it exists possibility of powering them with 12V or 24V.
The lamp mounting mechanism allows you to direct the light stream in any direction without having to dismantle them.
Construction:
*module - 5 diodes
*aluminum radiator
*plastic glass
*rotating and tilting mounting mechanism
*cable approx. 0.2 m
DIMENSIONS:
HEIGHT - 83 mm
WIDTH - 83 mm
DEPTH - 35 mm
HEIGHT WITH MOUNTING - 110mm
Parameters:
Rated power 15W
Luminous flux 1100 lm Supply voltage 12-24V
Requires power supply with appropriate polarity,
' - ' white wire
' + ' black wire
HAS E9 APPROVAL
EXAMPLE APPLICATION:
UNIVERSAL:
any use
no.07111
