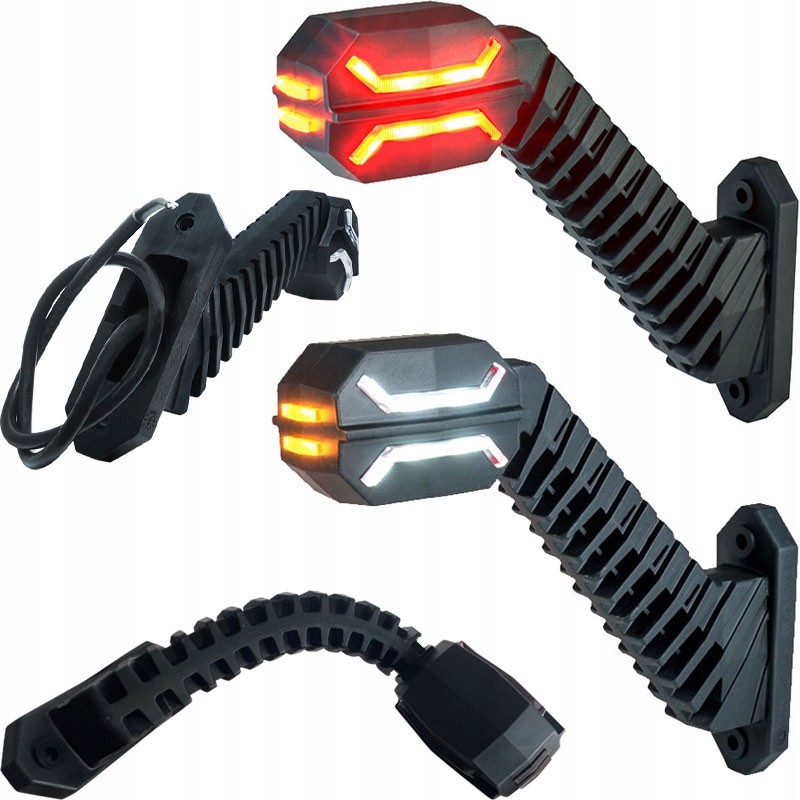

Set of marker lamps for dragon tractor trailer

SET OF CLEARANCE LAMPS DRAGON TRACTOR TRAILER Specification: Lamp group HOR 134

Number of LEDs 16

Marker lamp category

Rear position light

Supply voltage 12/24 V

Rated power 1.9 W

Operating temperature range from -30°C to +50 °C

Cable 2×0.75 mm2, cable length 0.5 m

Side marker light

Right and left mounting side

Front position light

Boom

Diode lamp (LED)

IP 68 tightness class

The lamps are fully hermetic (compliance with the degree of protection against moisture IP 68), and the operating temperature range is from -30 degrees C to + 50 degrees C.

Set of 2 pieces of DRAGON horn lamps Dimensions: Length: 200 mm

Height: 179 mm

Width: 50 mm

Screw spacing: 78 mm

Lamp functions* rear position light (red light color) - 6 diodes

* front position light (white light color) - 6 diodes

* side marker light (orange light color) - 4 diodes

← APPLICATION → LED (diode) and bulb lamps intended for illuminating vehicles, trucks, semi-trailers, tow trucks, tractors and other agricultural and construction vehicles. They fit Schmitz, Krone, Wielton, Koegel semi-trailers.
