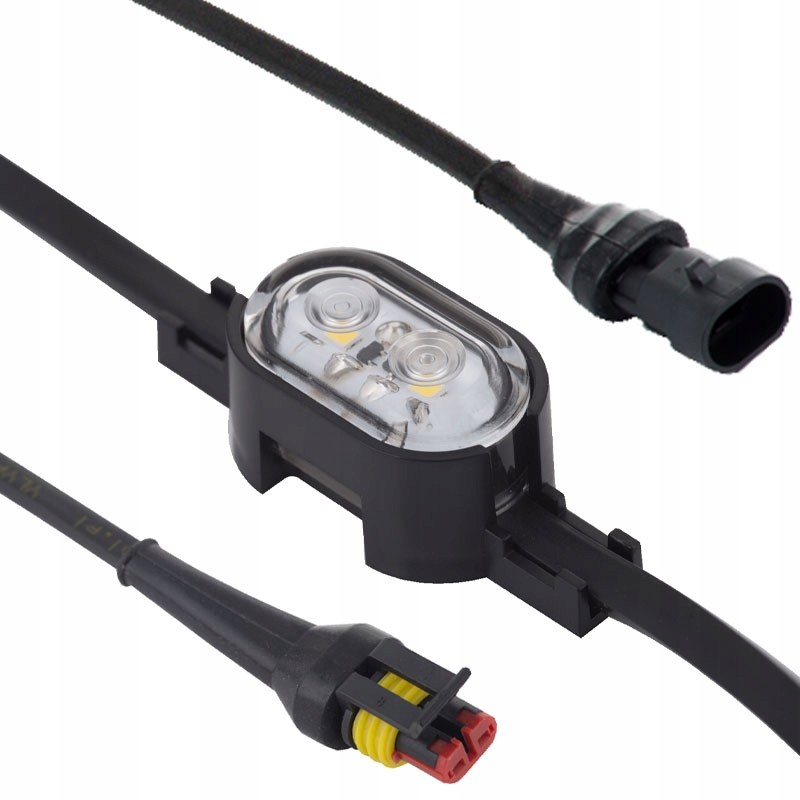

Universal lamp for illuminating the working field

UNIVERSAL LAMP FOR LIGHTING THE WORKING AREA Specification: Lamp group: HOR 106

Number of LEDs: 2

Lamp category: for illuminating the working field of machines

Supply voltage: 12/24 V

Rated power: single lamp: 0.45/0.9 W

Operating temperature range: from -30°C to +50°C

Installation side: universal

Luminous flux: 35

Diode lamp (LED)

Tightness class: IP 68

Narrow 'focused' lighting angle: 40o,

2 diodes LED type,

Lamp color temperature: 6000 K - white,

Rated power of a single lamp: 0.45/0.90 W

Universal polarization,

Operating temperature: from -35°C to +60°C,

Installation: M4x16 metric screw + M4 washer + M4 nut and/or 4.8x120mm clamp [you can use another one],

Lamp terminated with a Superseal socket and plug on a 2×0.75mm2 flat cable

Cable: 2x0.75mm2 flat cable terminated with a socket and Supersal plug

Length of one connector: 15 cm

← APPLICATION →LED (diode) and bulb lamps intended for illuminating vehicles, trucks, semi-trailers, tow trucks, tractors and other agricultural and construction vehicles. They fit Schmitz, Krone semi-trailers, wielton, koegel.
