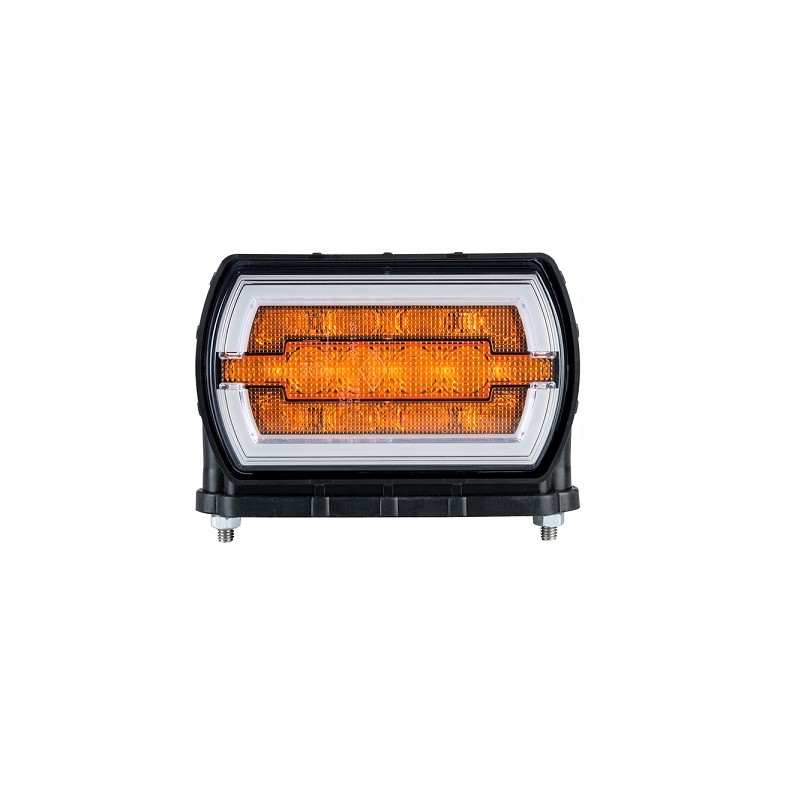

Front lamp assembly, lower horpol mounting

CLEOfront front lamp, version with lower mounting. The LZD 2789/B lamp is universal in terms of installation, it can be installed both on the left and right side of the vehicle.

The lamp is equipped with light functions:

front position light with NEON effect

front turn signal.

This model will work well, among others: in vehicles such as:

agricultural and construction machines

specialized vehicles

forklifts

quads

light electric vehicles

municipal vehicles

Power consumption at 12 V operating voltage: – front position light (1.6 W), – front indicator (4.1 W).

Power consumption at 24 V operating voltage: – front position light (3.6 W), – front indicator (4.6 W). Made of the highest quality materials and energy-saving LED technology, which ensures very good lighting parameters at very high low power consumption. The lamp is fully hermetic (compliance with the degree of protection against moisture IP 68), and the operating temperature range is from -30 degrees C to + 50 degrees C. Only branded diodes are used for production, and their number is 32 pcs. Guaranteed is also the operation of the lamp in a way that does not interfere with the operation of other electrical or electronic devices in the vehicle, which is confirmed by approval for electromagnetic compatibility (EMC).

TECHNICAL DATA: Number of LEDs: 32

Lamp category: front unit Supply voltage: 12/24 V

Operating temperature range: from -30°C to +50°C

Cable: 3×0.5 mm2, cable length 1 m

Mounting side: universal

Front position light: yes

Diode lamp (LED): yes

Tightness class: IP 68

Front turn signal: yes
