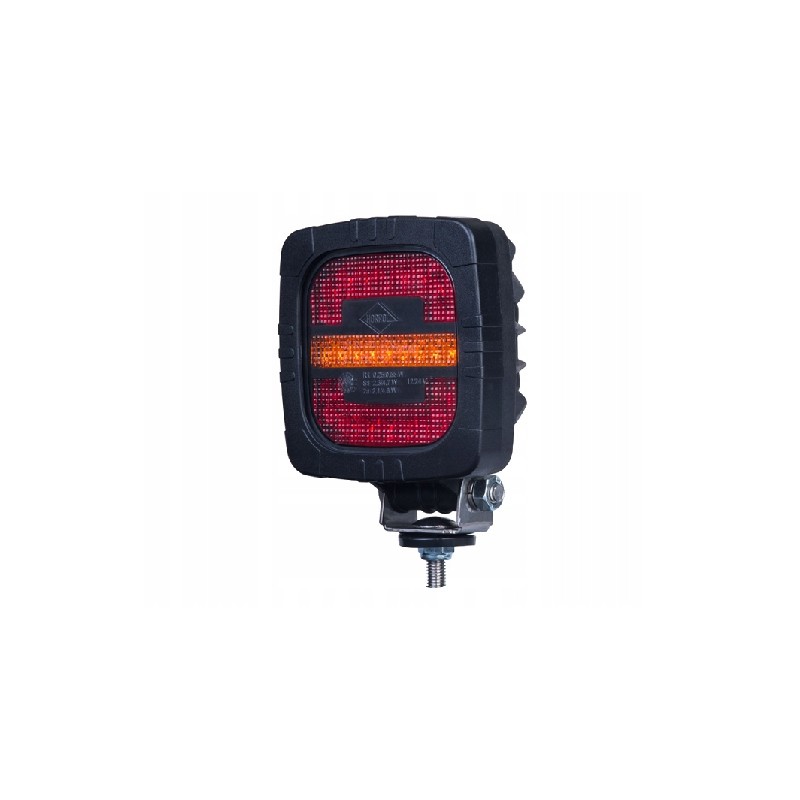

Combined rear lamp with a handle

ROCA rear combination lamp with LZD 2803 holder The series of ROCA combination lamps has been extended to include models with a special holder that allows for stable mounting of the lighting in hard-to-reach places. The tilting support allows you to change the angle of the lamp and thus the direction of light. The ROCA LZD 2803 lamp is designed for installation at the rear of the vehicle and combines the following functions:

– position light (0.25/0.55 W),

– brake light (2.3/4.7 W),

– turn signal (2.1/4.8 W).

All ROCA group lamps will be used in specialized vehicles, agricultural and construction machines. The name of the ROCA collection and the materials from which the lamps are made unconditionally emphasize the durability, resistance and indestructibility of the products. The lamps are distinguished by the following features:

- excellent mechanical strength (ABS+PC plastics),

- good dielectric properties (PC),

- high impact strength at low temperatures (ABS),

- resistance to high temperatures (polyamide PA66GF30),

– UV resistance (PMMA),

– long life and high durability of diodes,

– low electricity consumption,

– high tightness class IP 68,

– universal supply voltage of 12/24 V.

TECHNICAL DATA: Group of lamps: HOR 118

Number of LEDs: 27

Lamp category: combined rear lamp Rear position light: yes

Supply voltage: 12/24 V

Operating temperature range: from -30°C to +50°C

Cable: 4×0.5 mm2, cable length 1 m

Connection method: with handle

Mounting side: universal

Brake light: yes

Rear turn signal: yes

Diode lamp (LED): yes

Tightness class: IP 68
