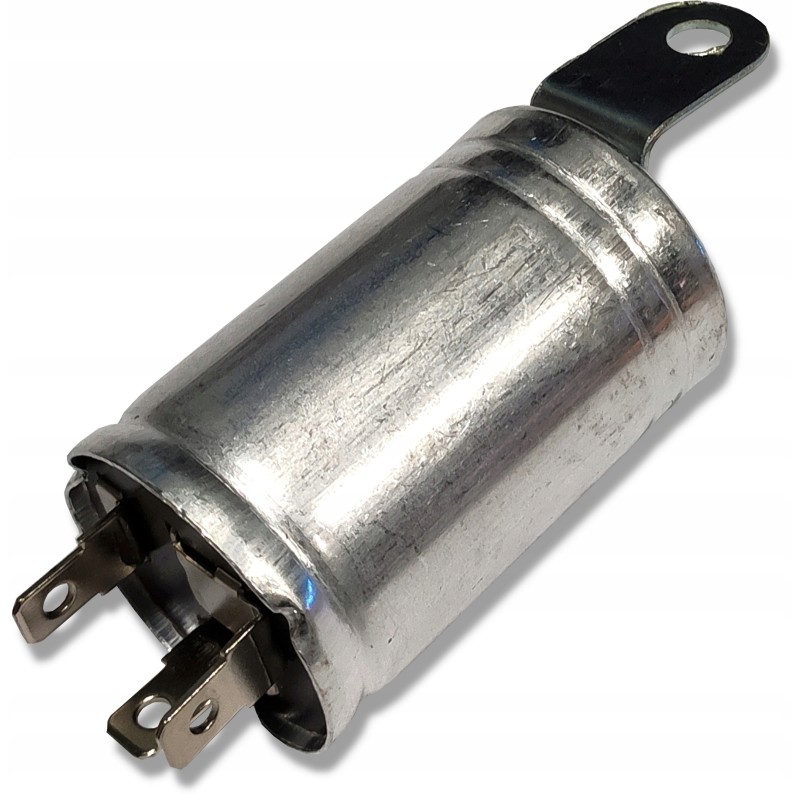

TURN SIGNAL INTERRUPTOR C-330, C-360 SKRAW-MET CODE: [2606]Turn indicator interrupter dedicated to agricultural machines of the URSUS C-330, C-360, C-385 and similar brands.
Can be used in agriculture, horticulture, forestry, construction or the broadly understood industry.
Technical specifications: voltage: 12V 3x21W+3W
box dimensions without mounting part and plugs: height: 55mm x thickness 34.5mm
Total height: 91 mm (including pins and mounting)
installation hole diameter : 6mm
number of pins: 3x
Connection diagram:+ - means current (power supply)L - means left directionP - means right directionThanks to the accurate and precise workmanship - the circuit breaker guarantees long, failure-free use.
