2in1 daytime running lights turn signals 82 x LED w21w

15012926028022
£65.21
Quantity
5 Items

Description

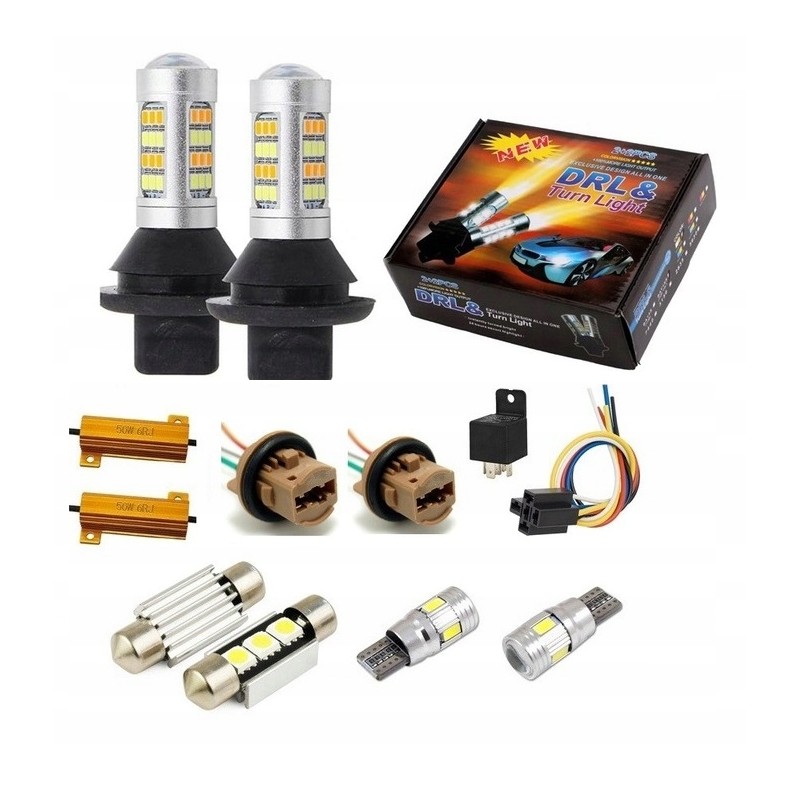

SET OF DRL DAYTIME RUNNING LIGHTS WITH TURN SIGNALS 2in1

2X LED 42 SMD2835 (white light 6500k and orange light in one bulb)

2x CANBUS FILTER

1X AUTOMATIC JD1914 40A

2X LED PARKING BULBS W5W SMD5630 CANBUS

2X LED C5W SMD BULBS 5050 CANBUS TUBE

2X ADAPTERS W21W WY21W T20 7440

A set of 2-in-1 LED bulbs is installed in place of the factory bulbs. Thanks to the automatic system, the daytime running lights come on when you turn the key in the ignition, and they turn off when you turn on the side or dipped beam lights. When the turn signal is activated, the daylight is replaced by an orange turn signal. After turning off the turn signal, the automatic light turns on the daylight in the headlights again. The set includes adapters thanks to which the LED set can be connected directly to the beam of any car headlight. If the lamp does not have a W21W connector, just cut the cable and solder it directly into the headlight harness.

2IN1 SMD 2835 LED BULBS:

Number of diodes in one bulb: 42 (21 white diodes + 21 orange diodes)

Diode type: SMD 2835

Light flux in one bulb 1000LM

Light color: 6500K White / Orange

CANBUS

Input voltage: 12V

Power: 20W

Dimensions: 70x37mm

ATTENTION! THE SET DOES NOT HAVE APPROVAL. For use in non-homologated lighting systems.

W5W LED BULBS:

Diode type: SMD 5630

Number of LEDs: 6

Supply voltage: 12V

Power consumption: 5W

Replacement: W3W, W5W, W10W, W16W

Socket type: T10, R10, w2.1x9.5d

Light flux: 378 Lm

Light color: 6000K (White)

Dimensions: 30x12mm

CANBUS

W5W LED bulbs can be used in parking lights, license plate illumination, doors, headliner, trunk, lower part of the doors.

C5W LED BULBS:

Replacement: C3W, C5W, C10W, C21W

Socket type: SV8.5-8

Number of diodes: 3

Diode type: SMD 5050

Light flux: 72lm Voltage: 12V

Light color: 6000K (White)

Dimensions: 36x13mm

CANBUS

The use of W5W tubular LED bulbs can be found in parking lights, license plate illumination, doors, headliner, trunk, lower part of the doors.

JD1914 40A daytime running light switch + socket with wires

Instructions for connecting the relay (automatic device):

PIN no. 30 should be connected to plus ( +) ignition switch

PIN no. 85 should be connected to the ground (-)

PIN no. 86 should be connected to the plus (+) of the parking lights

PIN no. 87 should not be connected anywhere - it should be insulated

PIN no. 87a should be connected to the plus (+) of the lights for daytime driving

Product Details
15012926028022
DRL
5 Items
New

Data sheet

Part Number
DRL
Producer
other (W21W)
