Push button switch for raising and lowering

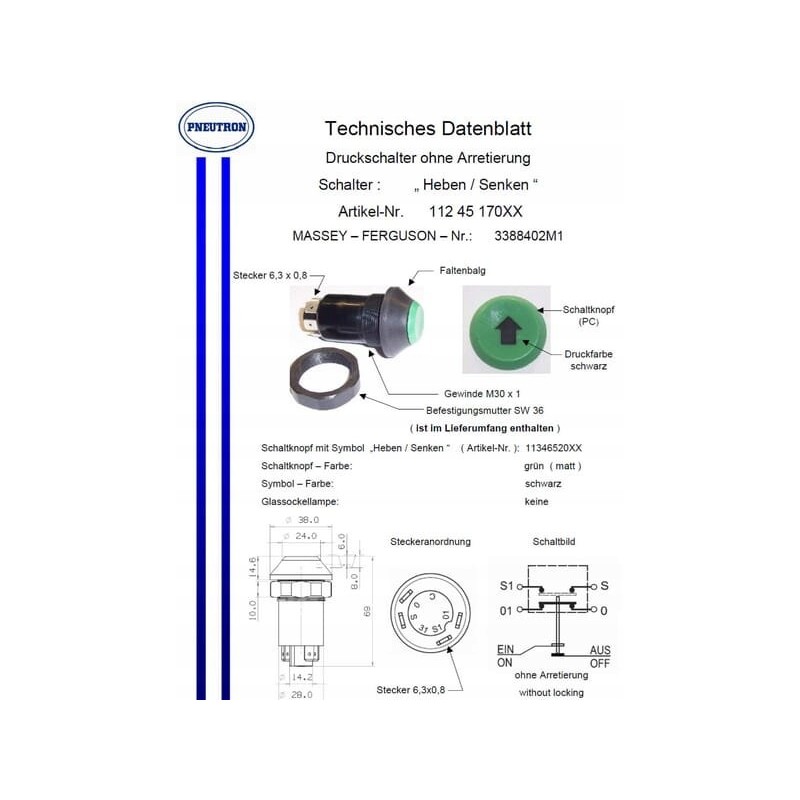

Push-button switch, up and down, round, green Parameters

Part number: 11245170PN

Unit: piece

Manufacturer: Pneutron

Button color: Green

Color: green

Information: Without detent

Properties

- Voltage (nominal): 12 V to 24 V

- Operating temperature -30 to +70 C

- Possible load: minimum 10 mA, maximum 15 A

- Maximum current of a pair of contacts: 25 A

- Maximum switching current: 50 A

- Service life of 500,000 operations - Plug-in connector 6.3 x 8.0 (E-CU, 5 µm)

- Dust and splash resistant Technical information

- IP67 side switch

Function

- Lift, tool suspension system - Lower suspension system
