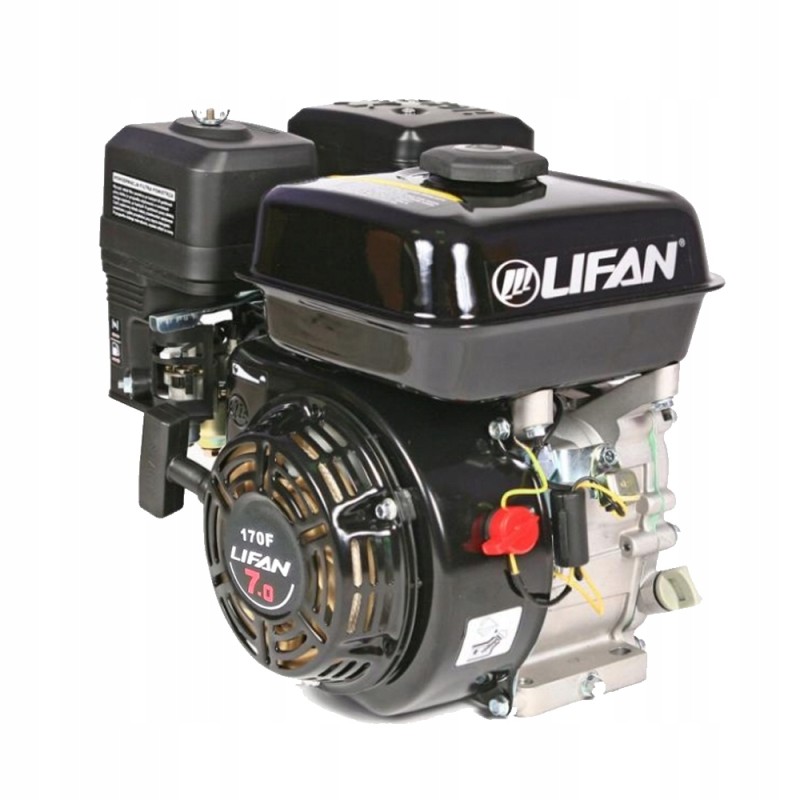

Lifan GX212 honda engine 7 HP 5 1 kW shaft 20 mm

LIFAN 170F Combustion engine 7 HP 20 mm HONDA GX212 GX200 GX160 Compactor Cutter Trowel Vibrator TillerLIFAN 170F is a single-cylinder, four-stroke engine based on reliable OHV technology. This model, like the vast majority of Lifan engines, uses air cooling. Light, quiet and efficient, and made of high-quality materials. The combustion engine has a power of 7 HP and a displacement of 212 cm³. The maximum rotation speed of the crankshaft is 3,600 rpm. The engine has an output shaft with a diameter of 20 mm. Recommended fuels are 95 unleaded petrol. Fuel tank - 3.7 L is enough for over four hours of continuous operation at maximum load. The lightweight design makes it much easier to carry and transport. The engine is used in various machines used in construction, agriculture and gardening (e.g. compactors, cutters, power trowels).

The presented 170F petrol engine can be used interchangeably for machines from manufacturers such as: Honda, Pezal, Robin-Subaru, Briggs-Stratton , Holida, Kipor, Loncin, or Zipper.

engine: single-cylinder, four-stroke, air-cooled

engine capacity: 212 cm³ with a power of 7 HP (5.1 kW) / 3,600 rpm

engine start: manual (cable)

fuel: gasoline unleaded 95

tank capacity: 3.7 L

net weight: 17 kg

shaft diameter: 20 mm

shaft length: 61.7 mm (53 mm to the engine block)

mounting screw: M8 x 1.25

space for a wedge : 5 mm

height: 346 mm

width: 313 mm (including the shaft, without 290.6 mm)

spacing of mounting screws: 162 mm x 75 - 85 mm
