GX270 honda engine 9 km 6 6 kW 25 mm lifan

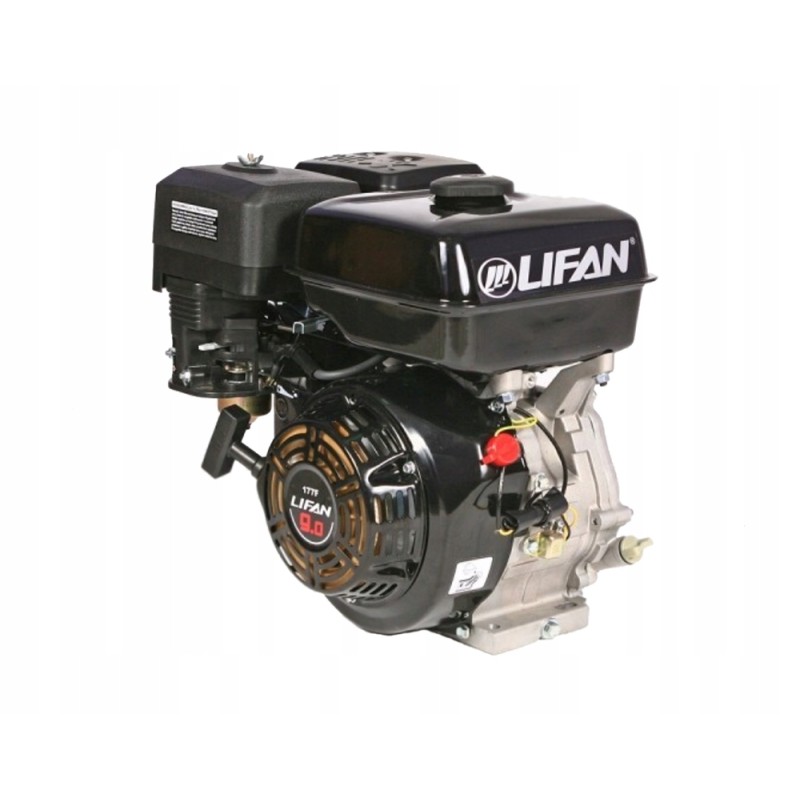

LIFAN 177F S Combustion engine 9 HP 25 mm GX270 Go-kart Power generator Motor pump Compactor Mobile cutter Trowel LIFAN GX270 is a single-cylinder, four-stroke engine based on reliable OHV technology. This model, like the vast majority of Lifan engines, uses air cooling. The combustion engine has a power of 9 horsepower, a high torque of 19 Nm and a displacement of 270 cm³. The maximum rotation speed of the crankshaft is 3,600 rpm. The above version has an output shaft with a diameter of 25 mm. Recommended fuels are 95 unleaded petrol. Fuel tank - 6.5 L is enough for several hours of continuous operation at maximum load. The engine is used in various machines used in construction, agriculture and horticulture (e.g. compactors, go-karts, tillers, power generators, motor pumps, mobile cutters, power trowels and many others).

The presented GX270 Lifan petrol engine can be used interchangeably for machines such as manufacturers such as: Honda, Pezal, Robin-Subaru, Briggs-Stratton, Holida, Kipor, Loncin, or Zipper.

engine: single-cylinder, four-stroke, air-cooled

engine capacity: 270 cm³ with a power of 9 HP (6.6 kW) / 3,600 rpm

engine start: manual (cable)

fuel: 95 unleaded gasoline

tank capacity: 6.5 L

noise level: 97 dB

weight: 25 kg

shaft diameter: 25 mm

shaft length: 60 mm (63 mm) to the engine block)

mounting screw: M8 x 1.25

space for the wedge: 7 mm

height: 422 mm

width: 355 mm (including the shaft, without 316 mm)

spacing of mounting screws: 195.5 mm x 83 - 109 mm
