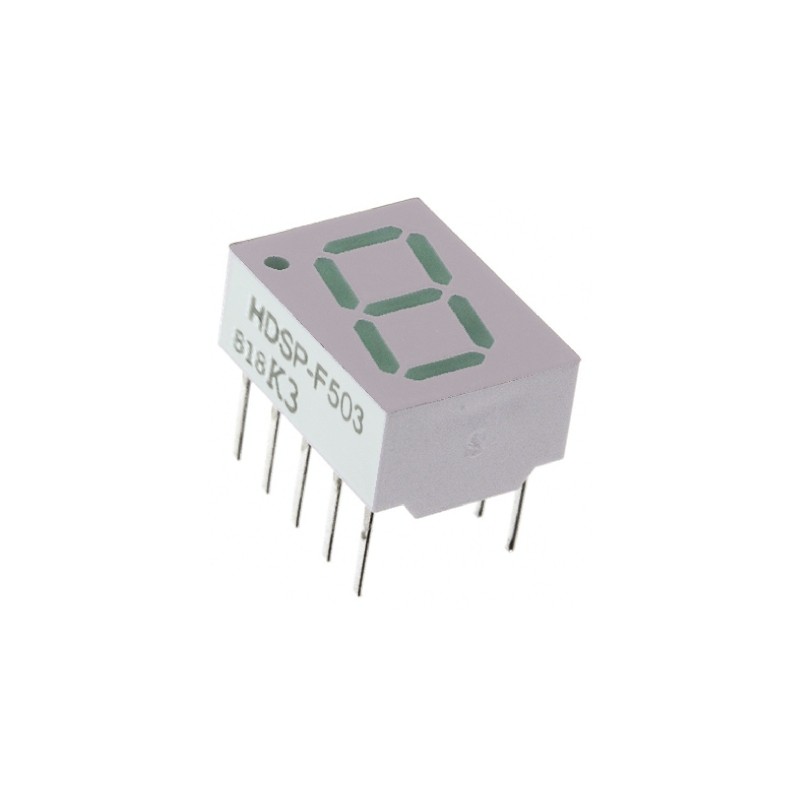

    1 pcs - HDSP-F503 Broadcom 7-Segment LED Display, CC Green 3.5 mcd RH DP 10.2mm
    • 1 pcs - HDSP-F503 Broadcom 7-Segment LED Display, CC Green 3.5 mcd RH DP 10.2mm
    • 1 pcs - HDSP-F503 Broadcom 7-Segment LED Display, CC Green 3.5 mcd RH DP 10.2mm

    1 pcs - HDSP-F503 Broadcom 7-Segment LED Display, CC Green 3.5 mcd RH DP 10.2mm

    Allparts-UK/15/R/246-5500
    Broadcom
    £12.51
    Delivery: 4-7 business days
    Quantity
    39 Items

    Product Details
    Broadcom
    Allparts-UK/15/R/246-5500
    HDSP-F503
    39 Items

    Data sheet

    Manufacturer
    Broadcom
    Character width
    5.6mm
    Number of characters
    1
    External width
    9.8mm
    External height
    12.9mm
    A-Supplier
    Allparts-UK-R
    Maximum Operating Temperature
    +100°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -40°C
    Display Type
    7-Segment
    Operating Temperature Range
    -40 - +100°C
    External Dimensions
    12.9 x 9.8 x 6.36mm
    External Depth
    6.4mm
    Forward Voltage
    2.1 V
    Forward Current
    30mA
    Character Height
    10.2mm
    LED Colours
    Green
    Number of Segments
    7
    Dominant Wavelength
    571 nm
    Luminous Intensity
    3.5 mcd
    Colour of Face
    Grey
    Common Connection
    Cathode
    Decimal Orientation
    Right Side
