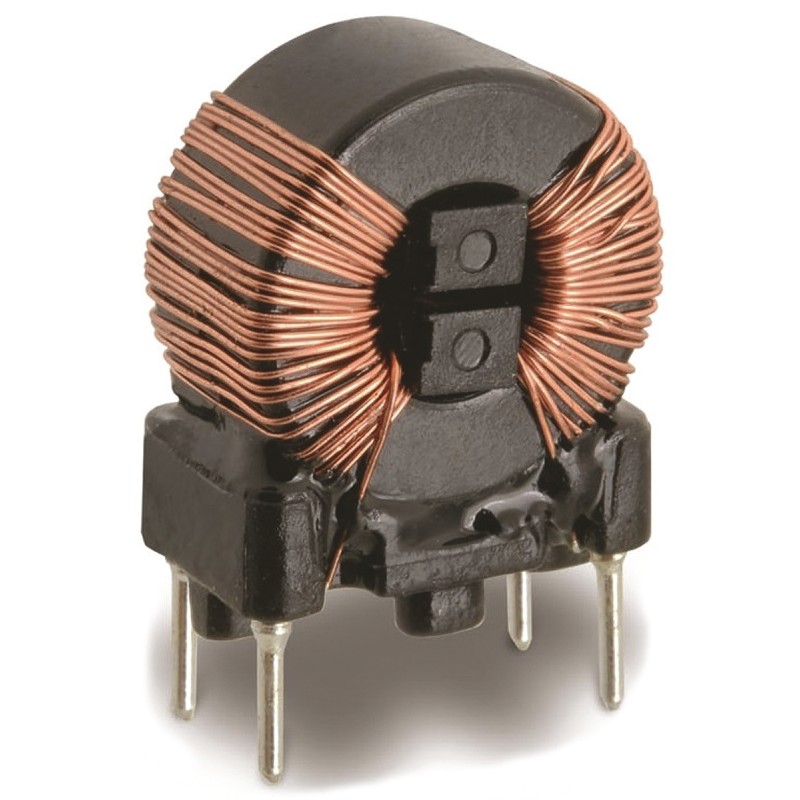

    1 pcs - Wurth 2 x 500 μH -30 - +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz - 300 MHz, 3.5A Idc, 2 x
    • 1 pcs - Wurth 2 x 500 μH -30 - +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz - 300 MHz, 3.5A Idc, 2 x

    1 pcs - Wurth 2 x 500 μH -30 - +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz - 300 MHz, 3.5A Idc, 2 x

    Allparts-UK/15/R/816-4761P
    £11.36
    Delivery: 4-7 business days
    Quantity
    650 Items

    Product Details
    Wurth Elektronik
    Allparts-UK/15/R/816-4761P
    7448013501
    650 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    -30 - +50%
    Dimensions
    15 x 7.5 x 16mm
    Height
    16mm
    Length
    15mm
    Depth
    7.5mm
    A-Supplier
    Allparts-UK-R
    Series
    WE-CMBNC
    Terminal Type
    Through Hole
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -40°C
    Maximum DC Current
    3.5A
    Inductance
    2 x 500 μH
    Lead Pitch
    10mm
    Lead Diameter
    0.7mm
    Maximum DC Resistance
    2 x 33mΩ
    Core Material
    Nano Crystalline
    Maximum Self Resonant Frequency
    1 kHz - 300 MHz
