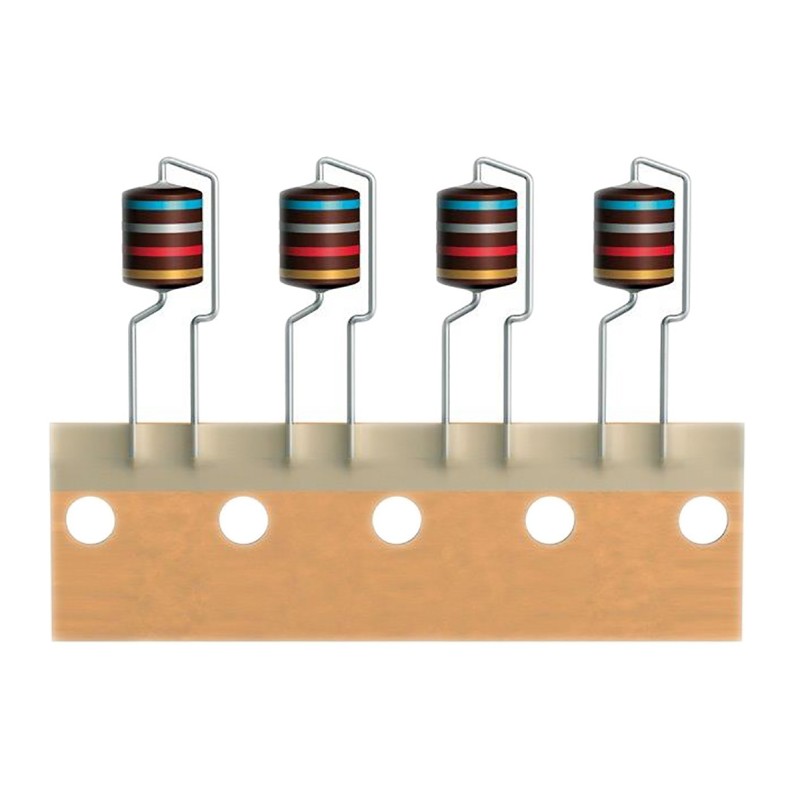

    100 pcs - B82144B1105J000 EPCOS 1 mH ±5% Ferrite Leaded Inductor, Max SRF:2.2MHz, Q:60, 280mA Idc, 4.2Ω Rdc, LBC
    • 100 pcs - B82144B1105J000 EPCOS 1 mH ±5% Ferrite Leaded Inductor, Max SRF:2.2MHz, Q:60, 280mA Idc, 4.2Ω Rdc, LBC

    100 pcs - B82144B1105J000 EPCOS 1 mH ±5% Ferrite Leaded Inductor, Max SRF:2.2MHz, Q:60, 280mA Idc, 4.2Ω Rdc, LBC

    100(Allparts)8807234
    EPCOS
    100 pcs - B82144B1105J000 EPCOS 1 mH ±5% Ferrite Leaded Inductor, Max SRF:2.2MHz, Q:60, 280mA Idc, 4.2Ω Rdc, LBC
    £51.50
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    EPCOS B82144B LBC Series RF ChokesEpcos B82144B LBC series RF chokes are suitable for use in telecommunications, automotive electronics, energy saving lamps and entertainment electronics. They can also be used for RF blocking and filtering and decoupling and interference suppression. These inductors consist of a large ferrite drum core with enamel copper wire winding. The Epcos 82144B series has flame-retardant lacquer coating and non lacquered lead wire.High rated currentVery wide inductance rangeSuitable for wave solderingInductance indicated by colour bands to IEC 60062Terminals are radially ben to 5 mm lead spacing and are electroplated with nickel and pure tin
    Product Details
    EPCOS
    100(Allparts)8807234
    B82144B1105J000
    10 Items

    Data sheet

    Manufacturer
    EPCOS
    Tolerance
    ±5%
    Dimensions
    6.5 (Dia.) x 9.2mm
    Diameter
    6.5mm
    Height
    9.2mm
    Length
    30.5mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    LBC
    Terminal Type
    Radial Leaded
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Radial
    Minimum Operating Temperature
    -55°C
    Maximum DC Current
    280mA
    Inductance
    1 mH
    Lead Pitch
    5mm
    Lead Diameter
    0.8mm
    Maximum DC Resistance
    4.2Ω
    Core Material
    Ferrite
    Maximum Self Resonant Frequency
    2.2MHz
    Minimum Quality Factor
    60
