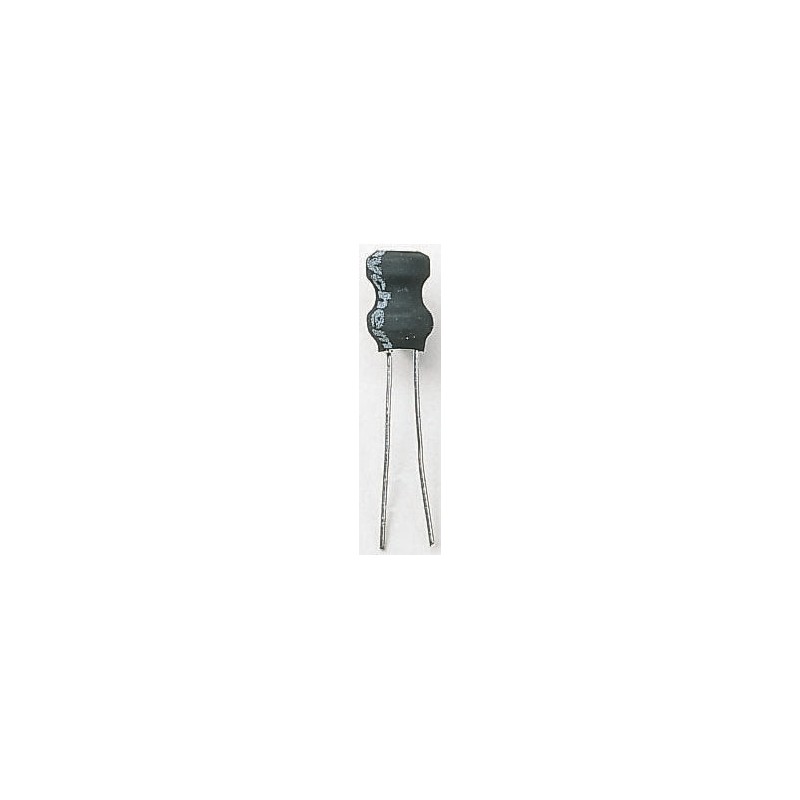

    50 pcs - 22R334C Murata 330 μH ±10% Leaded Inductor, Max SRF:3.7MHz, Q:100, 380mA Idc, 1210mΩ Rdc, 2200R
    • 50 pcs - 22R334C Murata 330 μH ±10% Leaded Inductor, Max SRF:3.7MHz, Q:100, 380mA Idc, 1210mΩ Rdc, 2200R

    50 pcs - 22R334C Murata 330 μH ±10% Leaded Inductor, Max SRF:3.7MHz, Q:100, 380mA Idc, 1210mΩ Rdc, 2200R

    50(Allparts)6299278
    50 pcs - 22R334C Murata 330 μH ±10% Leaded Inductor, Max SRF:3.7MHz, Q:100, 380mA Idc, 1210mΩ Rdc, 2200R
    £59.14
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Murata 22R Series Radial InductorResin coated miniature general purpose radial wire ended RF inductorsTheir small size makes them particularly suitable for d.c. supply line filtering and low power switching regulator applicationsOperating temperature: -25 - +70°CHeight 45mm, Dia. 7.2mm, Lead Dia. 0.6mmMurata Leaded Inductors (Chokes)
    Product Details
    Murata Power Solutions
    50(Allparts)6299278
    22R334C
    10 Items

    Data sheet

    Manufacturer
    Murata Power Solutions
    Tolerance
    ±10%
    Dimensions
    6.5 (Dia.) x 10.5mm
    Diameter
    6.5mm
    Height
    10.5mm
    Length
    7.7mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    2200R
    Terminal Type
    Through Hole
    Maximum Operating Temperature
    +70°C
    Mounting Type
    Radial
    Minimum Operating Temperature
    -25°C
    Maximum DC Current
    380mA
    Inductance
    330 μH
    Lead Pitch
    3mm
    Lead Diameter
    1.20mm
    Maximum DC Resistance
    1210mΩ
    Maximum Self Resonant Frequency
    3.7MHz
    Minimum Quality Factor
    100
