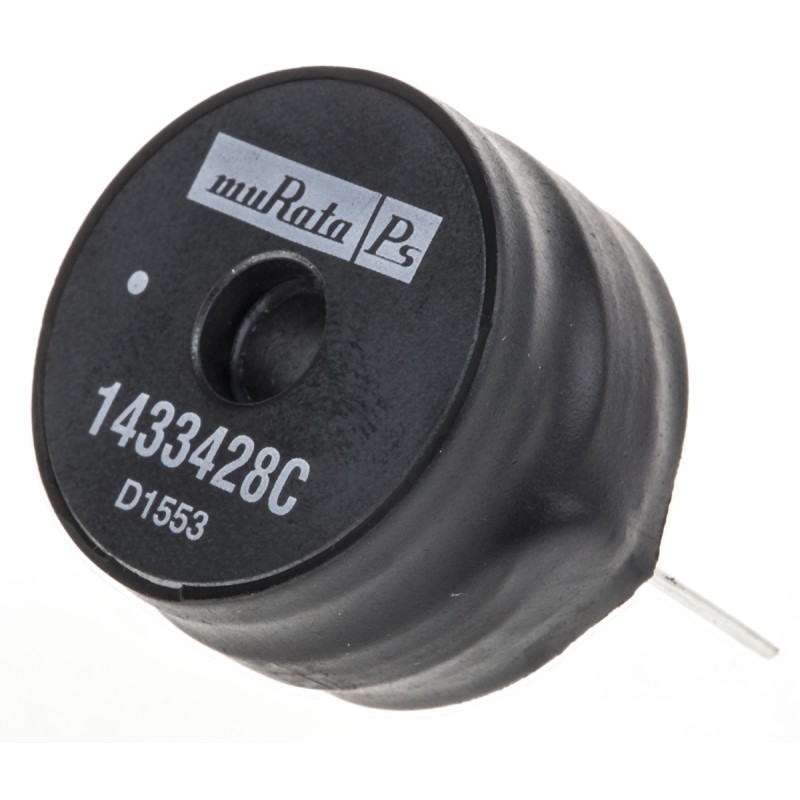

10 pcs - 1433428C Murata 330 μH ±10% Leaded Inductor, Max SRF:2.5MHz, Q:22, 2.8A Idc, 150mΩ Rdc, 1400
    • 10 pcs - 1433428C Murata 330 μH ±10% Leaded Inductor, Max SRF:2.5MHz, Q:22, 2.8A Idc, 150mΩ Rdc, 1400

    10 pcs - 1433428C Murata 330 μH ±10% Leaded Inductor, Max SRF:2.5MHz, Q:22, 2.8A Idc, 150mΩ Rdc, 1400

    10(Allparts)228438
    10 pcs - 1433428C Murata 330 μH ±10% Leaded Inductor, Max SRF:2.5MHz, Q:22, 2.8A Idc, 150mΩ Rdc, 1400
    £50.56
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Murata 1400 Series High Current Radial InductorsDesigned for use in power line applications such as switching regulators, filters and suppression circuitsConstructed from high saturation flux density material enabling use in high current applicationsSuitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing holeTerminated with easy-strip pre-tinned enamelled copper leadsLead length 10mmOperating temperature: -40 - +85°CInductance Tolerance: ±10%Murata Leaded Inductors (Chokes)
    Product Details
    10(Allparts)228438
    1433428C
    10 Items

    Data sheet

    Manufacturer
    Murata Power Solutions
    Tolerance
    ±10%
    Dimensions
    25.9 x 24.4 x 14mm
    Diameter
    25.9mm
    Height
    14mm
    Length
    24mm
    Depth
    24.4mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    1400
    Terminal Type
    Radial Leaded
    Maximum Operating Temperature
    +85°C
    Mounting Type
    Radial
    Minimum Operating Temperature
    -40°C
    Maximum DC Current
    2.8A
    Inductance
    330 μH
    Lead Pitch
    23.4mm
    Lead Diameter
    0.76mm
    Maximum DC Resistance
    150mΩ
    Maximum Self Resonant Frequency
    2.5MHz
    Minimum Quality Factor
    22
