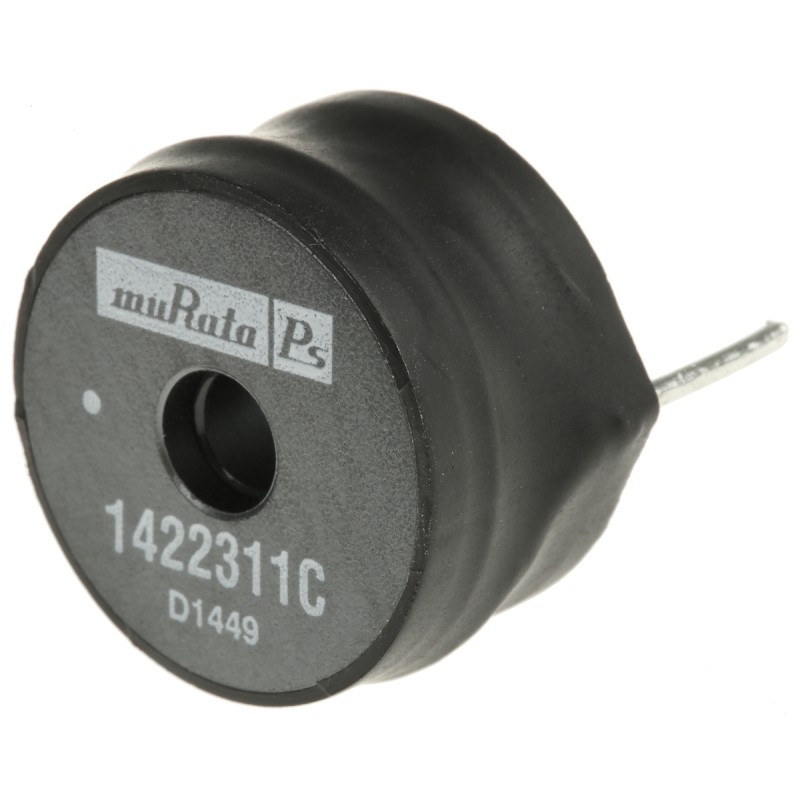

10 pcs - 1422311C Murata 22 μH ±15% Leaded Inductor, Max SRF:9.3MHz, Q:64, 11A Idc, 11mΩ Rdc, 1400
    • 10 pcs - 1422311C Murata 22 μH ±15% Leaded Inductor, Max SRF:9.3MHz, Q:64, 11A Idc, 11mΩ Rdc, 1400
    • 10 pcs - 1422311C Murata 22 μH ±15% Leaded Inductor, Max SRF:9.3MHz, Q:64, 11A Idc, 11mΩ Rdc, 1400

    10 pcs - 1422311C Murata 22 μH ±15% Leaded Inductor, Max SRF:9.3MHz, Q:64, 11A Idc, 11mΩ Rdc, 1400

    10(Allparts)6299206
    10 pcs - 1422311C Murata 22 μH ±15% Leaded Inductor, Max SRF:9.3MHz, Q:64, 11A Idc, 11mΩ Rdc, 1400
    £49.52
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Murata 1400 Series High Current Radial InductorsDesigned for use in power line applications such as switching regulators, filters and suppression circuitsConstructed from high saturation flux density material enabling use in high current applicationsSuitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing holeTerminated with easy-strip pre-tinned enamelled copper leadsLead length 10mmOperating temperature: -40 - +85°CInductance Tolerance: ±10%Murata Leaded Inductors (Chokes)
    Product Details
    10(Allparts)6299206
    1422311C
    10 Items

    Data sheet

    Manufacturer
    Murata Power Solutions
    Tolerance
    ±15%
    Dimensions
    27 (Dia.) x 14mm
    Diameter
    27mm
    Height
    14mm
    Length
    28.5mm
    Depth
    25.9mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    1400
    Terminal Type
    Through Hole
    Maximum Operating Temperature
    +85°C
    Mounting Type
    Radial
    Minimum Operating Temperature
    -40°C
    Maximum DC Current
    11A
    Inductance
    22 μH
    Lead Pitch
    23.9mm
    Lead Diameter
    1.30mm
    Maximum DC Resistance
    11mΩ
    Maximum Self Resonant Frequency
    9.3MHz
    Minimum Quality Factor
    64
