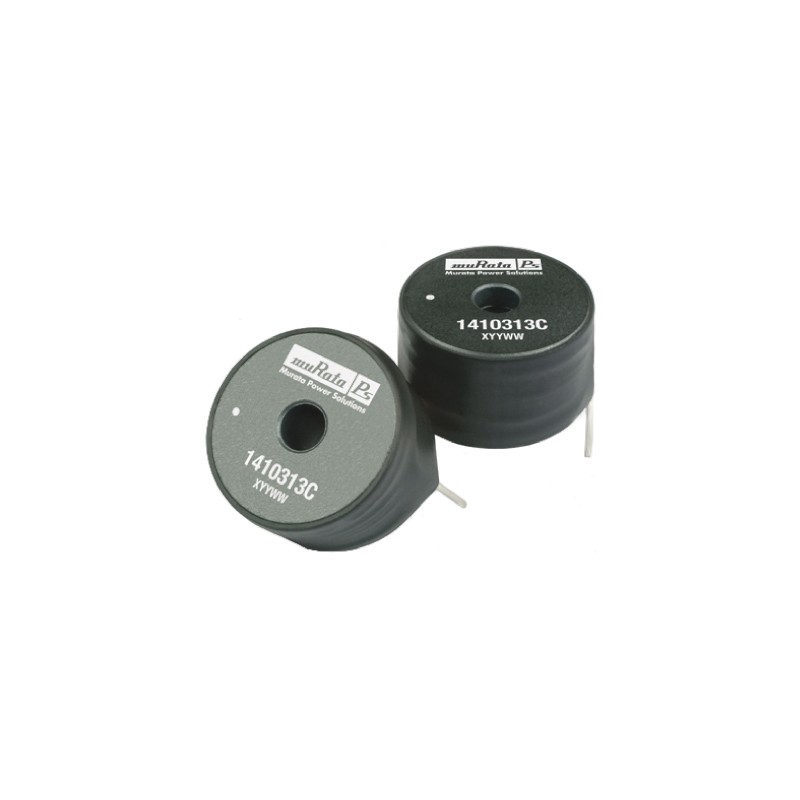

10 pcs - 1410313C Murata 10 μH ±10% Leaded Inductor, Max SRF:20.7MHz, Q:54, 13A Idc, 7mΩ Rdc, 1400
    • 10 pcs - 1410313C Murata 10 μH ±10% Leaded Inductor, Max SRF:20.7MHz, Q:54, 13A Idc, 7mΩ Rdc, 1400

    10 pcs - 1410313C Murata 10 μH ±10% Leaded Inductor, Max SRF:20.7MHz, Q:54, 13A Idc, 7mΩ Rdc, 1400

    10(Allparts)7156756
    10 pcs - 1410313C Murata 10 μH ±10% Leaded Inductor, Max SRF:20.7MHz, Q:54, 13A Idc, 7mΩ Rdc, 1400
    £49.52
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Murata 1400 Series High Current Radial InductorsDesigned for use in power line applications such as switching regulators, filters and suppression circuitsConstructed from high saturation flux density material enabling use in high current applicationsSuitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing holeTerminated with easy-strip pre-tinned enamelled copper leadsLead length 10mmOperating temperature: -40 - +85°CInductance Tolerance: ±10%Murata Leaded Inductors (Chokes)
    Product Details
    10(Allparts)7156756
    1410313C
    10 Items

    Data sheet

    Manufacturer
    Murata Power Solutions
    Tolerance
    ±10%
    Dimensions
    28.5 x 25.9 x 15.5mm
    Height
    15.5mm
    Length
    28.5mm
    Depth
    25.9mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    1400
    Terminal Type
    Through Hole
    Maximum Operating Temperature
    +85°C
    Mounting Type
    Radial
    Minimum Operating Temperature
    -40°C
    Maximum DC Current
    13A
    Inductance
    10 μH
    Lead Pitch
    23.9mm
    Lead Diameter
    1.30mm
    Maximum DC Resistance
    7mΩ
    Maximum Self Resonant Frequency
    20.7MHz
    Minimum Quality Factor
    54
