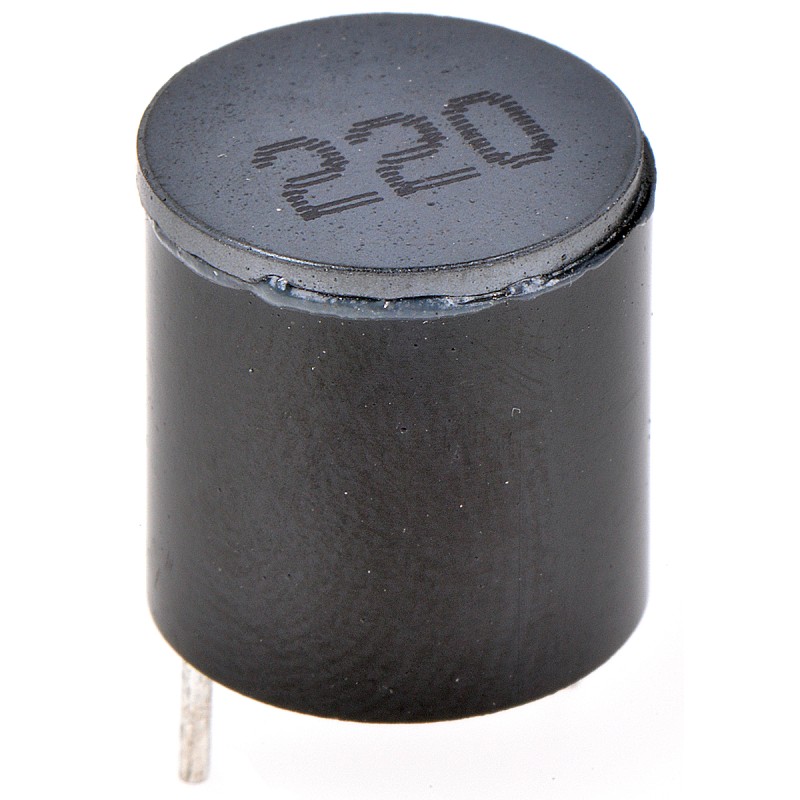

10 pcs - 744750560220 Wurth 22 μH ±20% Ferrite Power Inductor, 7.7A Idc, 14.5mΩ Rdc, WE-FAMI
    • 10 pcs - 744750560220 Wurth 22 μH ±20% Ferrite Power Inductor, 7.7A Idc, 14.5mΩ Rdc, WE-FAMI
    • 10 pcs - 744750560220 Wurth 22 μH ±20% Ferrite Power Inductor, 7.7A Idc, 14.5mΩ Rdc, WE-FAMI

    10 pcs - 744750560220 Wurth 22 μH ±20% Ferrite Power Inductor, 7.7A Idc, 14.5mΩ Rdc, WE-FAMI

    10(Allparts)8997069
    10 pcs - 744750560220 Wurth 22 μH ±20% Ferrite Power Inductor, 7.7A Idc, 14.5mΩ Rdc, WE-FAMI
    £49.26
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Wurth WE-FAMI Series THT Power InductorsWurth Elektronic WE-FAMI power inductors deliver high performance due to their material composition. With a shielded design and a low stray field, these power inductors provide saturation current of up to 19.7 A with RDC values starting at 3.8Ω. Suitable applications include portable devices, power supplies and battery chargers, DC/DC converters and home entertainment systems.Wurth Leaded Inductors (Chokes)
    Product Details
    10(Allparts)8997069
    744750560220
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    ±20%
    Dimensions
    14.8 (Dia.) x 15.8mm
    Diameter
    14.8mm
    Height
    15.8mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-FAMI
    Terminal Type
    Radial Leaded
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Radial
    Minimum Operating Temperature
    -40°C
    Maximum DC Current
    7.7A
    Inductance
    22 μH
    Lead Pitch
    12mm
    Lead Diameter
    0.9mm
    Maximum DC Resistance
    14.5mΩ
    Core Material
    Ferrite
