10 pcs - 12LRS153C Murata 15 μH ±20% Leaded Inductor, 3A Idc, 70mΩ Rdc, 1200LRS
    • 10 pcs - 12LRS153C Murata 15 μH ±20% Leaded Inductor, 3A Idc, 70mΩ Rdc, 1200LRS

    10 pcs - 12LRS153C Murata 15 μH ±20% Leaded Inductor, 3A Idc, 70mΩ Rdc, 1200LRS

    10(Allparts)7157298P
    10 pcs - 12LRS153C Murata 15 μH ±20% Leaded Inductor, 3A Idc, 70mΩ Rdc, 1200LRS
    £29.20
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description

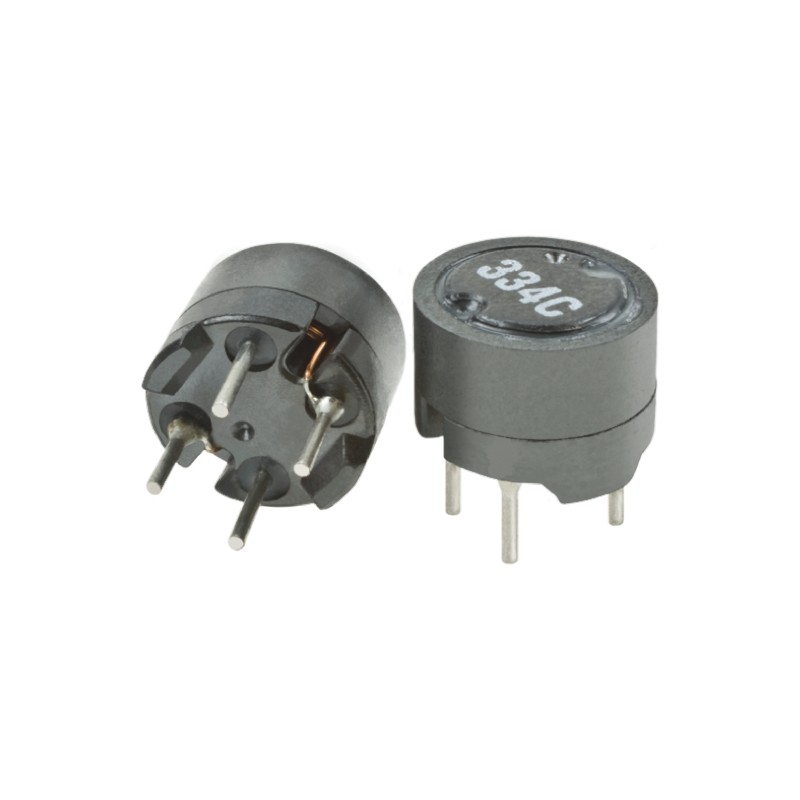

    Murata 1200LRS Series Shielded Radial Choke1200LRS Series Through hole radial lead shielded inductorsIntegral ferrite shield ideal for protecting circuits susceptible to EMISuitable for power line filtering in low to medium currentApplications: Switching power supply circuitsMurata Leaded Inductors (Chokes)
    Product Details
    10(Allparts)7157298P
    12LRS153C
    10 Items

    Data sheet

    Manufacturer
    Murata Power Solutions
    Tolerance
    ±20%
    Dimensions
    10.5 (Dia.) x 8.5mm
    Diameter
    10.5mm
    Height
    8.5mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    1200LRS
    Terminal Type
    Through Hole
    Maximum Operating Temperature
    +85°C
    Mounting Type
    Radial
    Minimum Operating Temperature
    -40°C
    Maximum DC Current
    3A
    Inductance
    15 μH
    Lead Pitch
    5mm
    Lead Diameter
    0.8mm
    Maximum DC Resistance
    70mΩ
