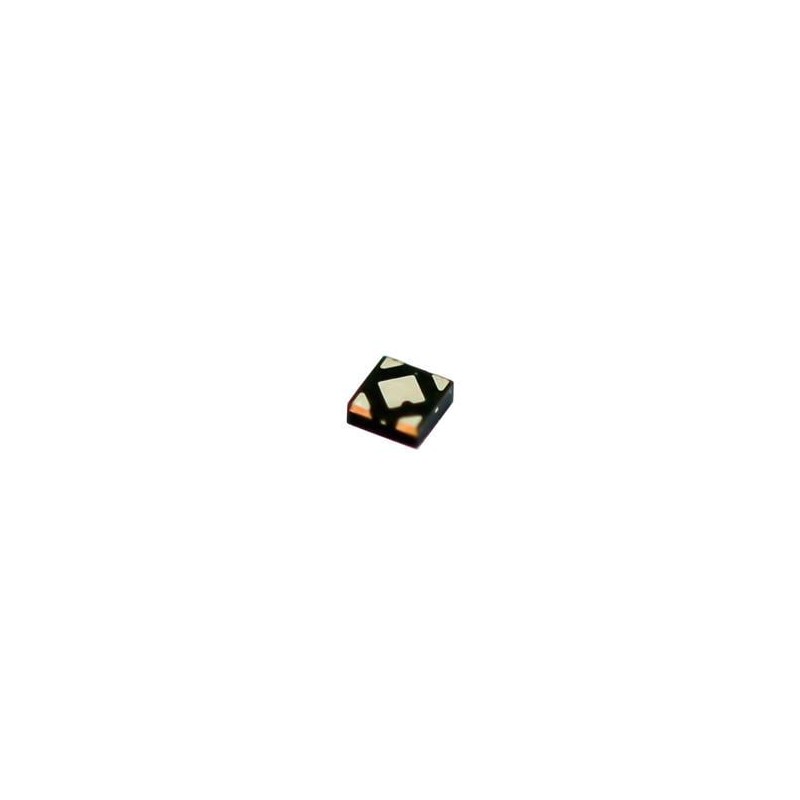

1 pcs : TPS7A0333PDQNR - LDO Voltage Regulators 200-mA, nanopower-IQ (200 nA), low-dropout (LDO) voltage regulator with enable 4

TPS7A03 200mA Low-Dropout (LDO) Linear Regulators Texas Instruments TPS7A03 200mA Low-Dropout (LDO) Linear Regulators are an ultra-small, ultra-low quiescent current LDO linear regulator that can source 200mA with excellent transient performance. The TPS7A03, with an ultra-low IQ of 200nA, is designed specifically for applications where a very-low quiescent current is a critical parameter. This device maintains low IQ consumption even in dropout mode to further increase the battery life. When in shutdown or disabled mode, the device consumes ultra-low, 3nA IQ that helps increase the shelf life of the battery. The TPS7A03 has an output range of 0.8V to 5.0V available in 50mV steps to support the lower core voltages of modern microcontrollers (MCUs). The TPS7A03 features a smart enable circuit with an internally controlled pull-down resistor that keeps the LDO disabled even when the EN pin is left floating and helps minimize the external components used to pull-down the EN pin. This circuit also helps minimize the current drawn through the external pull-down circuit when the device is enabled. The TPS7A03 is fully specified for TJ = –40°C to +125°C operation.
