Komatsu pc15 final drive seal set 3

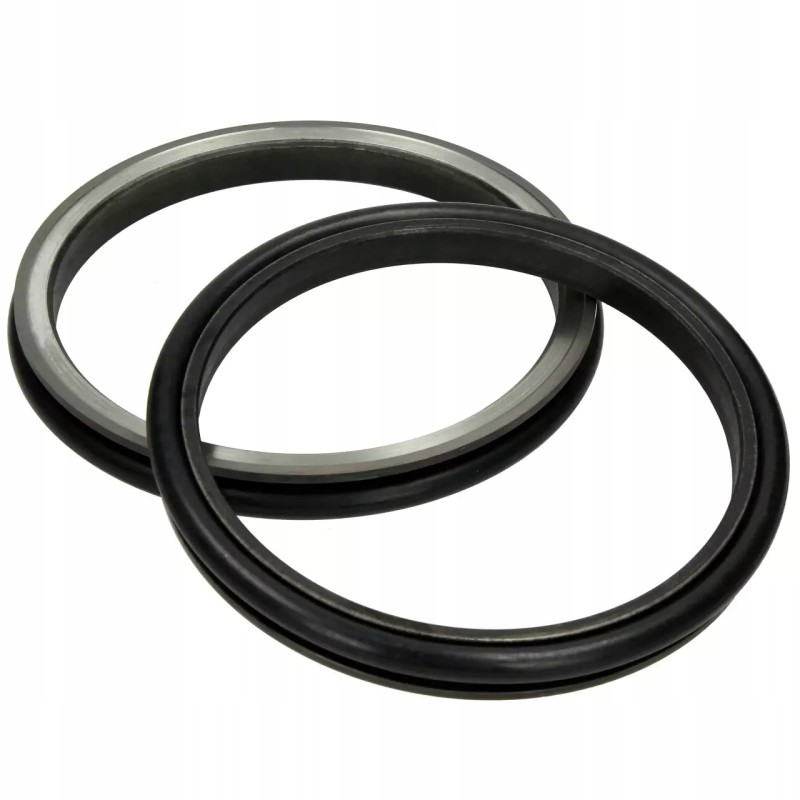

KOMATSU PC15-3 final drive seal setKOMATSU PC15-3 final drive seal The high-quality seal is a complete set that prevents oil leaks at the junction of the final drive flange and the hydromotor. The set consists of two metal rings and two rubber O-rings. The metal ring together with the outer bearing race form the so-called a sliding seal that allows the component to rotate and be tight. The rubber O-ring prevents oil leaks on the housing side and acts as a shock absorber to prevent the ring from being damaged during stress

Seal functions: Prevents oil leakage from the reduction gear Eliminates oblique stresses Reduces friction in the final drive Extends the service life of bearings (Life-Time). Technical data: Seal dimensions: 150 x 171 x 32 mm (internal dimension/external dimension/height)

Catalog number: 175-27-32711

Fits models: PC10-7, PC15-3, PC20-7, PC25-1, PC28UU-2

Ring material: forged steel Ring hardness: 60-65 HRC

O-ring material: NBR75

Abrasion resistance: high

Rust resistance: medium
