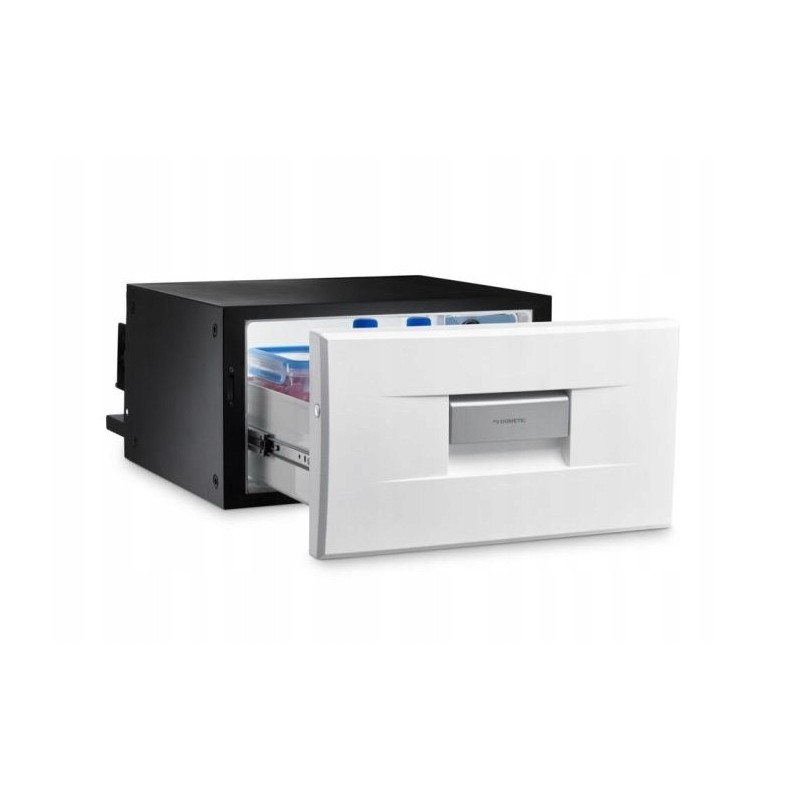

Camping compressor refrigerator for a Dometic camper

Product name: CoolMatic CD20 12/24V Waeco compressor drawer refrigerator - Dometic from GoMarket

Symbol: DO9105330081

Color: White

Size: 560 x 440 x h250 mm

Manufacturer: Dometic Waeco

Unit of measurement: piece

Description: Refrigerator built-in drawer compressor Coolmatic CD 20 from the renowned Waeco brand

Designed for installation in internal and external storage compartments

Dedicated to trucks - personalized cooling comfort

The refrigerator is equipped with a battery protection sensor that turns the compressor off and on again and thus protects the battery and the compressor against damage

Hermetic compressor with electronic control system, undervoltage protection of the starter battery, electronic fuse / automatic protection against reverse polarity, dynamically cooled tube condenser, aluminum evaporator,

heat dissipation to the outside using a brushless, wear-resistant fan

Even in the smallest compartment can be equipped with an efficient compressor refrigerator

Just use the WAECO Cool Matic CD20 drawer refrigerator

It can also be used in external storage compartments.

ADVANTAGES:

Temperature range from +15°C to +0°C

New compact design

Elegant front panel

Perfect refrigerator for bridge installation

Refrigeration unit can be mounted separately

Easy-pull drawer on ball-bearing guides

Temperature regulation using a stepless thermostat

Closing and opening the refrigerator with one movement

Safe locking

Connection to the 230 V electrical network via inexpensive power supply unit

(optional)

PARAMETERS:

Capacity (approx.): 20 l

Voltage: 12/24 V DC

Temperature range: from +15 °C to 0 °C

Average power consumption: approx. 40 W

Current consumption:

0.67 Ah/h at an ambient temperature of +20 °C1.33 Ah/h at an ambient temperature of +32 °C

at a temperature inside the device of +5°C

System:

Electronic fuse/ automatic protection against polarity change

Fully hermetic compressor with integrated electronic control system

Undervoltage protection / electronic fuse

Material: Stable metal housing, drawer made of cast iron elements

Weight (approx.): 16.1 kg

Certificates

e-certificate (EMC directives) (motor vehicles)

External dimensions of the Waeco CD20 refrigerator + compressor:

• width 56x44cm

• height 25cm

• weight 16.1 kg

Internal dimensions of the Waeco CD20 drawer:

• drawer width 34.5x33cm

• drawer height 18.5cm

• the drawer can accommodate products up to 18cm high

Color: white
