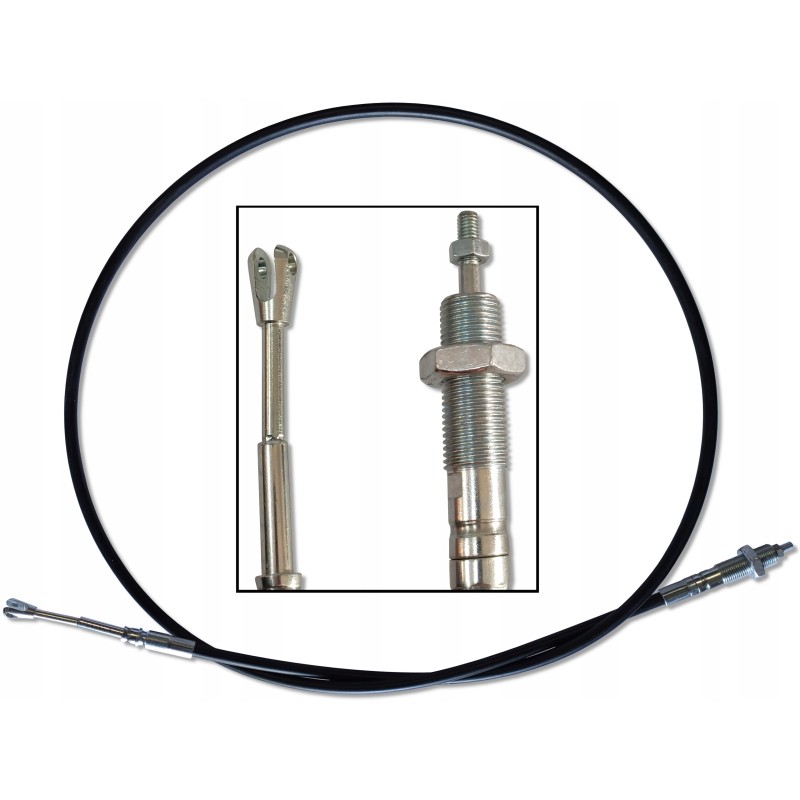

Joystick turn splitter cable for 2m forks

Cable for controlling the fork distributor, 2 m, SKRAW-MET CODE: [2448] SUPER DURABLE, 2 m long, metal armored cable. The cable is perfect for controlling hydraulic distributors used in hydraulically powered machines and devices controlled by a joystick/lever.

Can be used in agriculture, horticulture, forestry, construction or the broadly understood industry.

Ends: The end of the cable on the joystick side ended with a fork with a 6 mm hole and a 14 mm body

The end of the cable on the distributor side, cable body thread M16x1.5, slider thread M6x1.6

Technical specifications: Instructions for installing the cable on an example of the INDEMAR lever found on our other auctions: 1. Insert the cable with fork (5) into the lever hole.2. Guide the fork onto the movable lever mechanism located under the cap (4)3. Secure the fork with the pin and cotter pin (3) and press firmly until it does not pop out of the hole on its own. (As picture below)4. Install the screw (1) with the nut (2), then tighten5. Close the cap (4). The cable shown controls, among others: such hydraulic distributors
