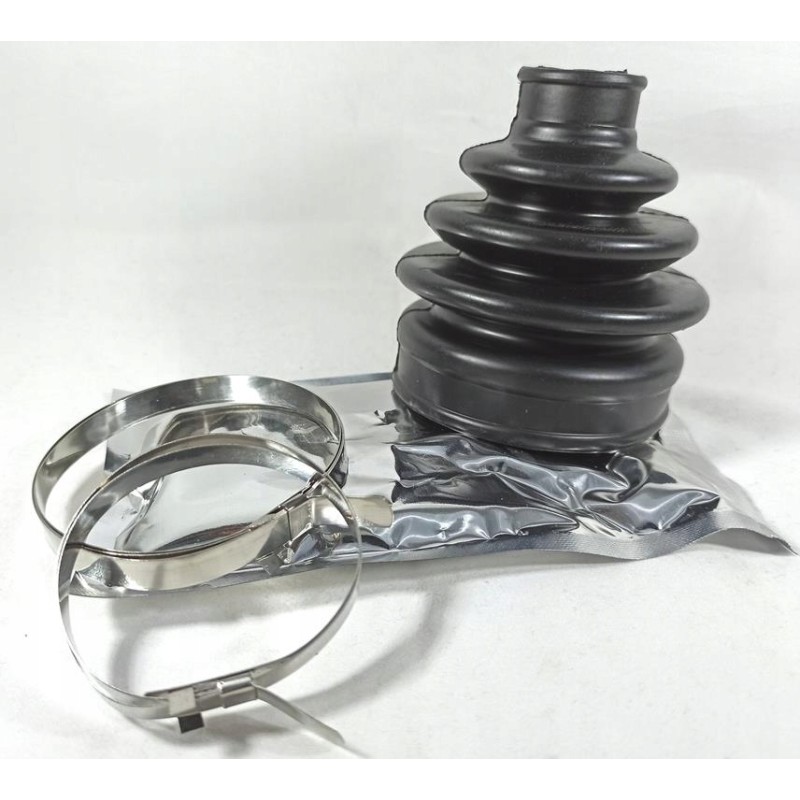

Rubber joint arctic cat yamaha grizzly 700 suzuki

Neoprene rubber wrist cuff 19-5030 Yamaha Grizzly 700 Suzuki KingQuad 700 750 Honda TRX 680 700

HD neoprene cuff more resistant than standard

Neoprene rubber is a foamed, closed-cell rubber based on CR rubber. CR chloroprene rubber, also called neoprene rubber, is characterized by high resistance to ozone, atmospheric aging, chemical agents and flames, it is also resistant to oils and greases, mineral oils, alcohols and glycols, coolants (freons), dilute acids, alkalis and water. Density from 120 to 160 kg/m3 and hardness from 40 to 50°Sh

the set includes:

Joint rubber, dimensions 17/59-83 mm

Graphite grease 90g (large)

Cable ties, (small and large for the machine), width 7 mm , thickness 0.3mm

application:

Inner front

Arctic Cat 350 Utility 4x4 11, 366 FIS w/AT 08,

CF-Moto CF500 07-14, Rancher 500 CF500-5 UTV 11-13, Rancher 600 CF600-5 UTV 11-13, Tracker 800 CF800-3 UTV 13-14, X5 TERRALANDER 500 11-14, X6 TERRALANDER 625 EFI 11-14, 12-14

Front outer

Yamaha YFM700 Grizzly 07-08, YFM700 Grizzly EPS 08, Arctic Cat 350 CR 12, 350 Utility 4x4 11, 366 FIS w/AT 08-11, 400 4x4 14-15, 400 FIS 4x4 w/ AT 13-14, 425 4x4 11-12, 450 4x4 14-15, 450 XC 11-17, 500 Prowler 17, Alterra 400 16-17, Alterra 450 16, Alterra 500 17,

Suzuki LTA-450 X King Quad 07 -10, LT-A500X 11-16, LT-A500XP POWER STEERING 11-16, LTA-700 X King Quad 05-07, LTA-750 X King Quad 08-14, LTA-750 XP King Quad Power Steering 11-16 ,

Inner rear

Arctic Cat 366 FIS w/AT 08, CF-Moto CF500 07-14, Rancher 500 CF500-5 UTV 11-13, Rancher 600 CF600-5 UTV 11-13, X5 TERRALANDER 500 11-14, X6 TERRALANDER 625 EFI 11-14, 400 4x4 14-15, 400 FIS 4x4 w/AT 13-14, 425 4x4 11-12, 450 4x4 14-15, 450 XC 11-17, Alterra 400 16-17, Alterra 450 16, Alterra 500 17,

Honda TRX680 Rincon 10-17, TRX700XX 08-09,

Suzuki LTA-450 X King Quad 07-08, LTA-700 X King Quad 05-07,

Yamaha YFM700 Grizzly 07-08, YFM700 Grizzly EPS 08
